Bespoke Garden Room | Bespoke 018
£8,620.43
Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information

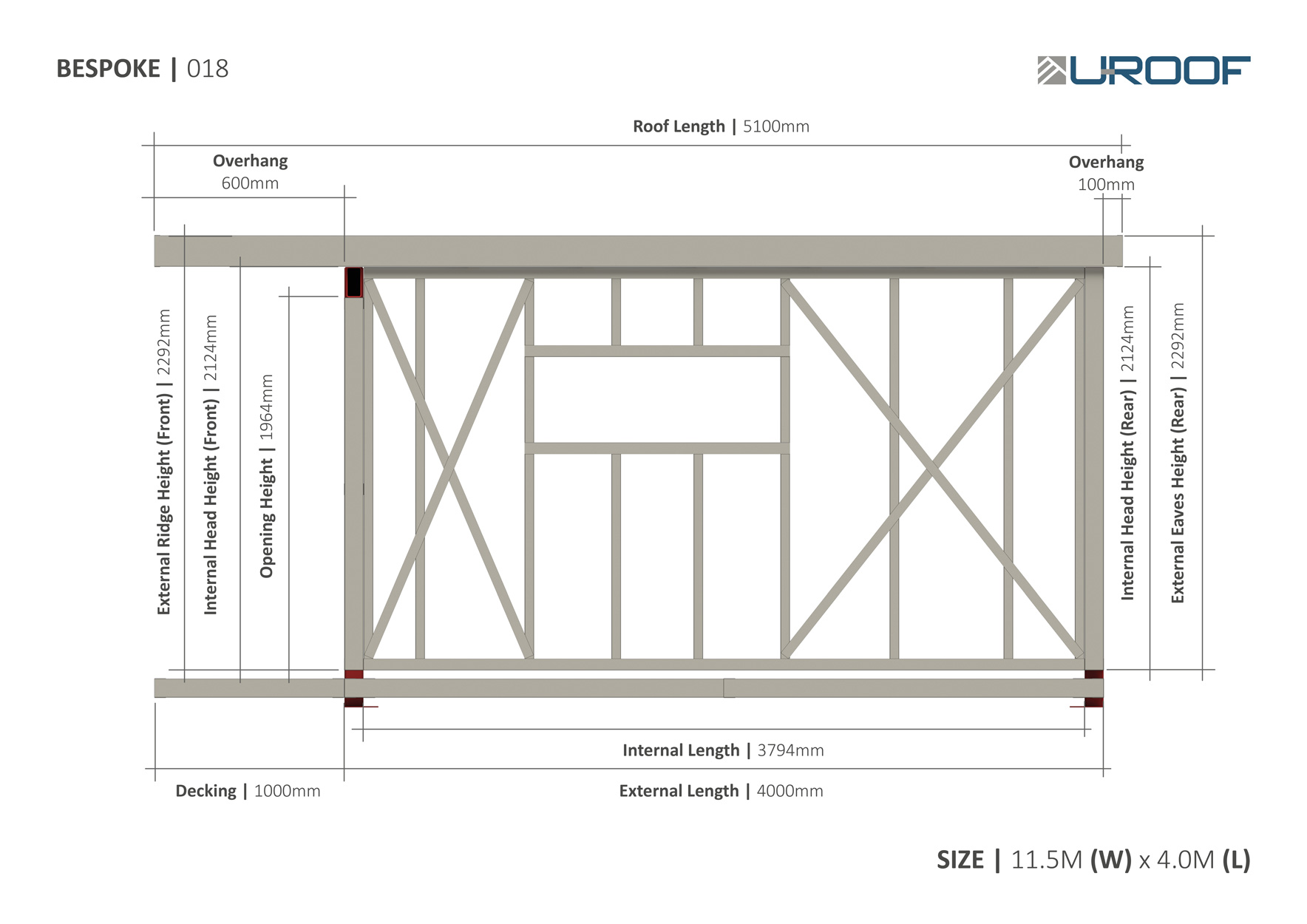

| Weight | 1607 kg |
|---|---|
| Dimensions | 4000 × 11500 × 2292 mm |
| Overall steel frame size | 11500mm (w) x 4000mm (l) |
| External steel frame size (RHS) | 7500mm (w) x 4000mm (l) |
| External steel frame size (LHS) | 4000mm (w) x 4000mm (l) |
| Internal steel frame size (RHS) | 7294mm (w) x 3794mm (l) |
| Internal steel frame size (LHS) | 3900mm (w) x 3797mm (l) |
| External steel frame height (highest point) | 2292mm |
| External steel frame height (lowest point) | 2124mm |
| Front structural opening size (RHS) | 4000mm (w) x 1964mm (h) |
| Front structural opening size (LHS) | 3900mm (w) x 1981mm (h) |
| Side structural opening size (RHS) | 1297mm (w) x 450mm (h) |
| Side structural opening size (LHS) | 3797mm (w) x 1981mm (h) |
| Rear structural opening size | 3900mm (w) x 1981mm (h) |
| Front Overhang | 1000mm |
| Rear, LHS & RHS Overhang | 100mm |
