Bespoke Garden Room | Bespoke 019


Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room

SKU: bespoke019 Category:


All of our frames are-prefabricated and will arrive to site in panel form.

The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.

A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.

Additional information

Weight 0.744 kg
Dimensions 3700 × 5500 × 2430 mm

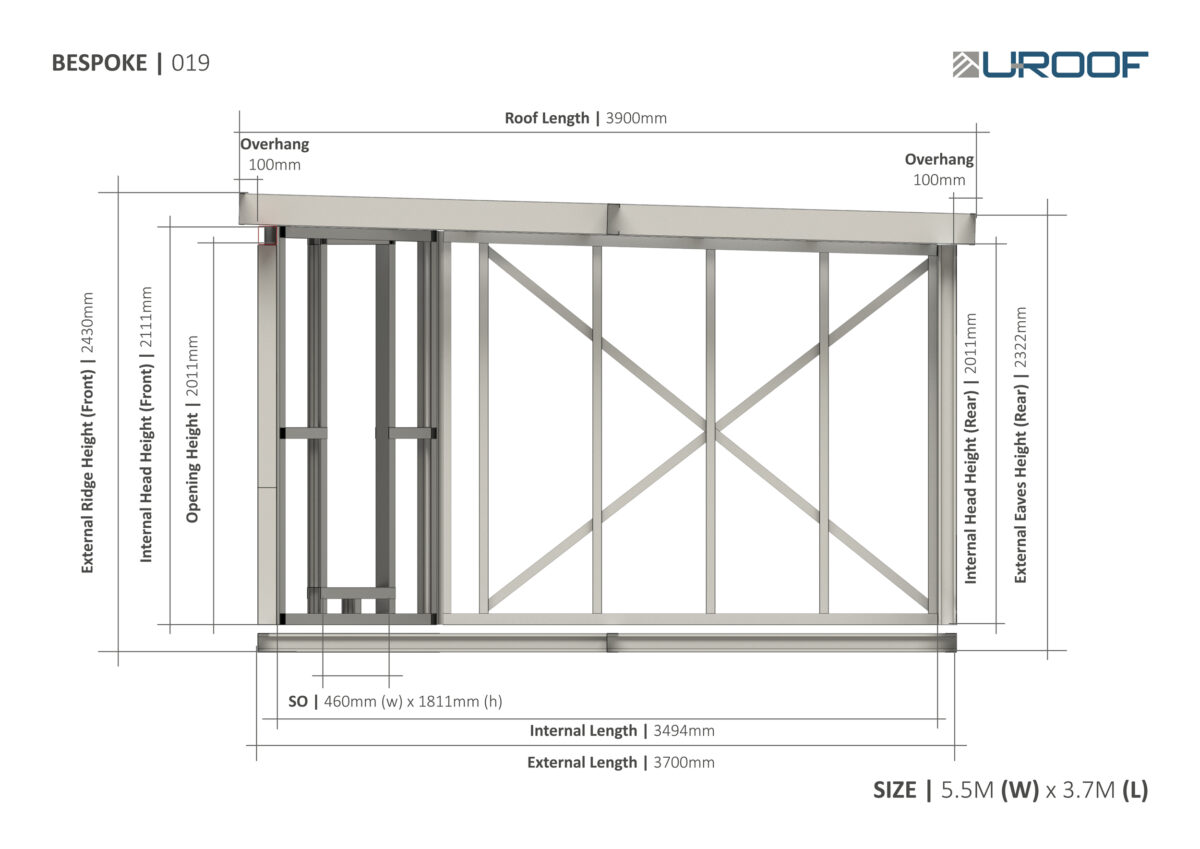

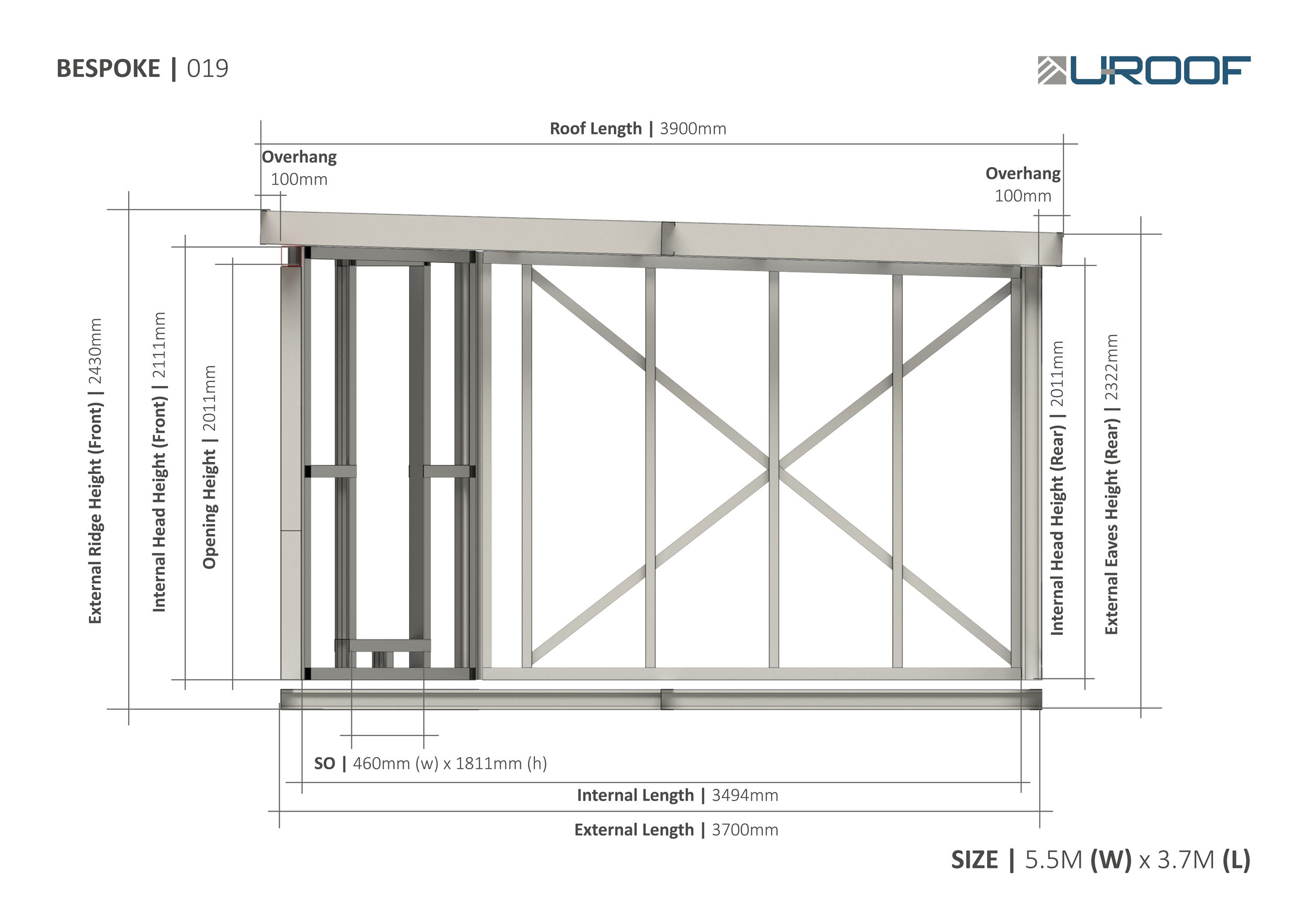

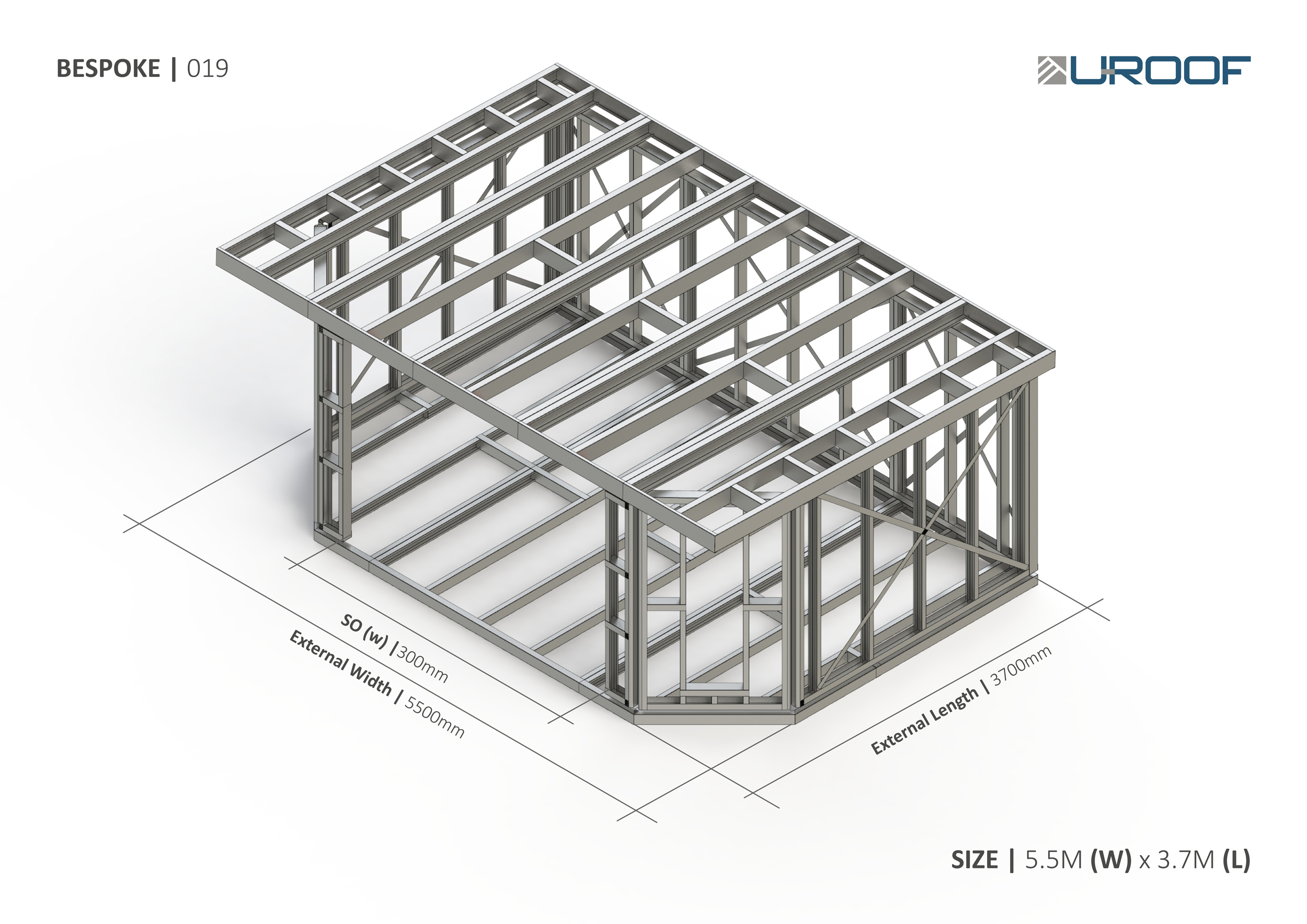

External steel frame size

5500mm (w) x 3700mm (l)

Internal steel frame size

5294mm (w) x 2494mm (l)

External steel frame height (highest point)


External steel frame height (lowest point)


Front structural opening size

3000mm (w) x 2011mm (h)

Sides structural opening sizes (FLHS & FRHS)

460mm (w) x 1811mm (h)

Front, Rear, LHS & RHS Overhang
