Bespoke Garden Room | Bespoke 025

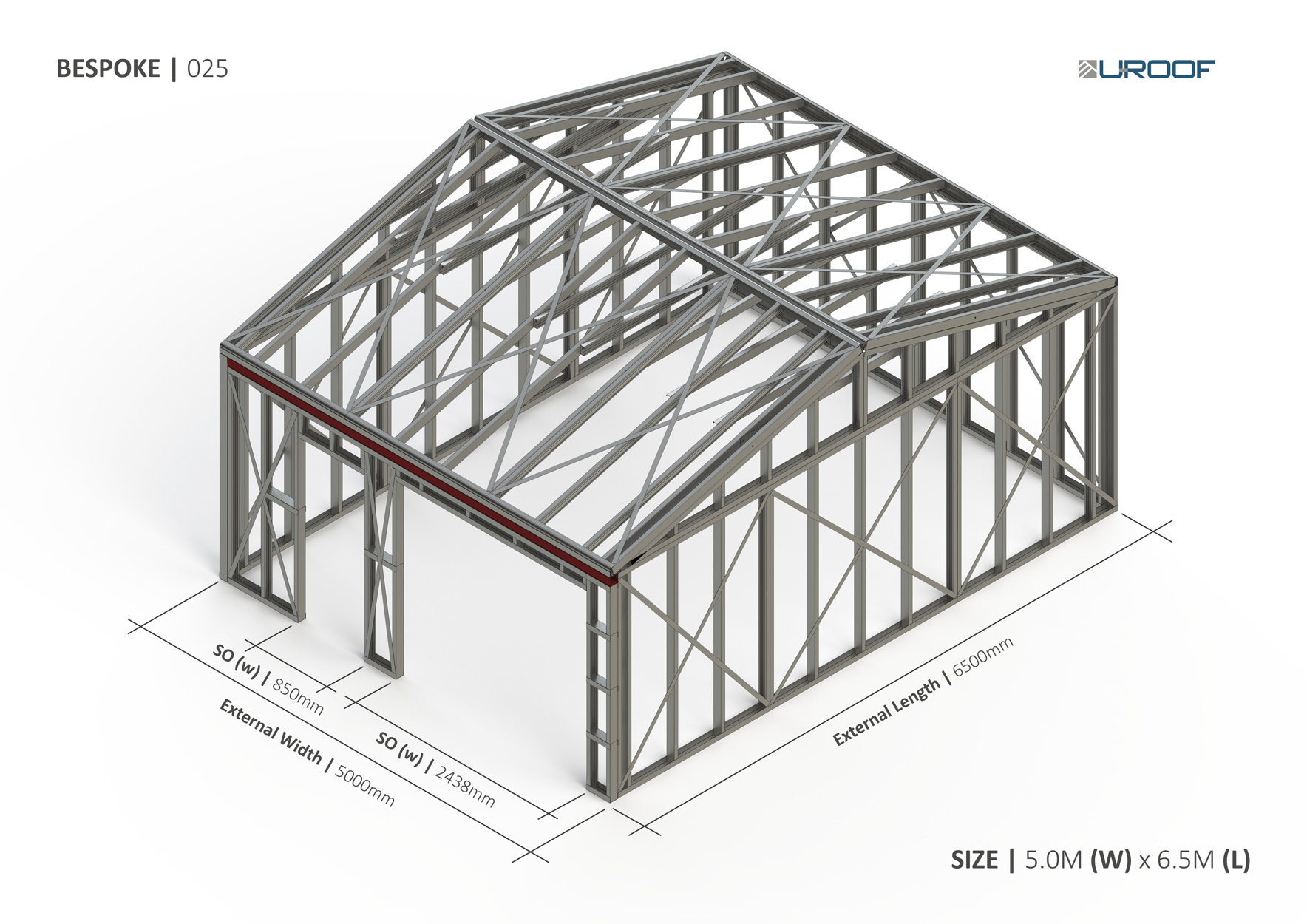

Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room

SKU: bespoke025 Category:


All of our frames are-prefabricated and will arrive to site in panel form.

The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.

A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.

Additional information

Weight 992 kg
Dimensions 6500 × 5000 × 3500 mm
External steel frame size

5000mm (w) x 6500mm (l)

Internal steel frame size

4794mm (w) x 6294mm (l)

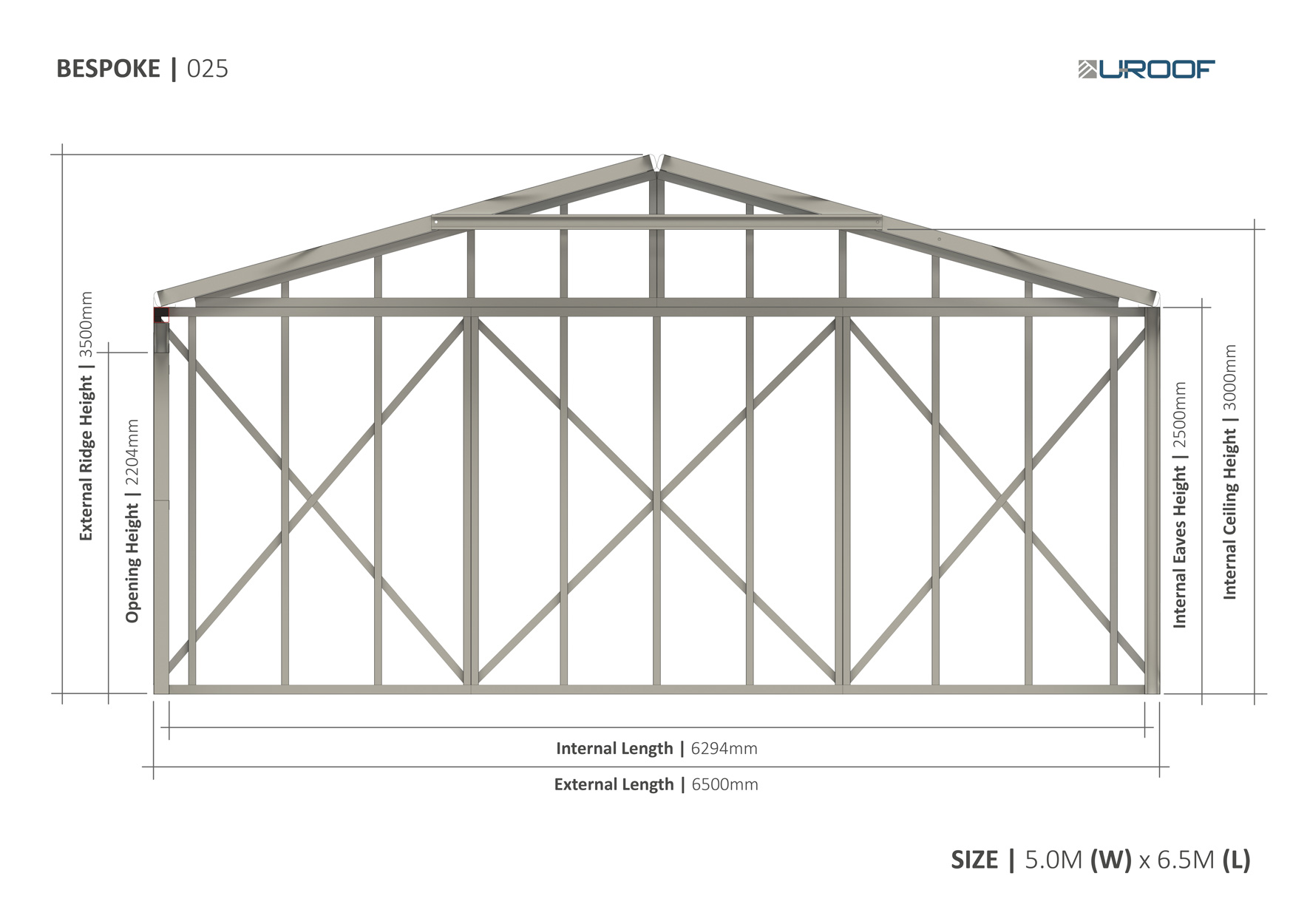

External steel frame ridge height


External steel frame eaves height


Internal steel frame ceiling height


Front structural opening size 1 (LHS)

850mm (w) x 2065mm (h)

Front structural opening size 2 (RHS)

2438mm (w) x 2204mm (h)
