Bespoke Garden Room | Bespoke 026 Pitched
£5,240.84

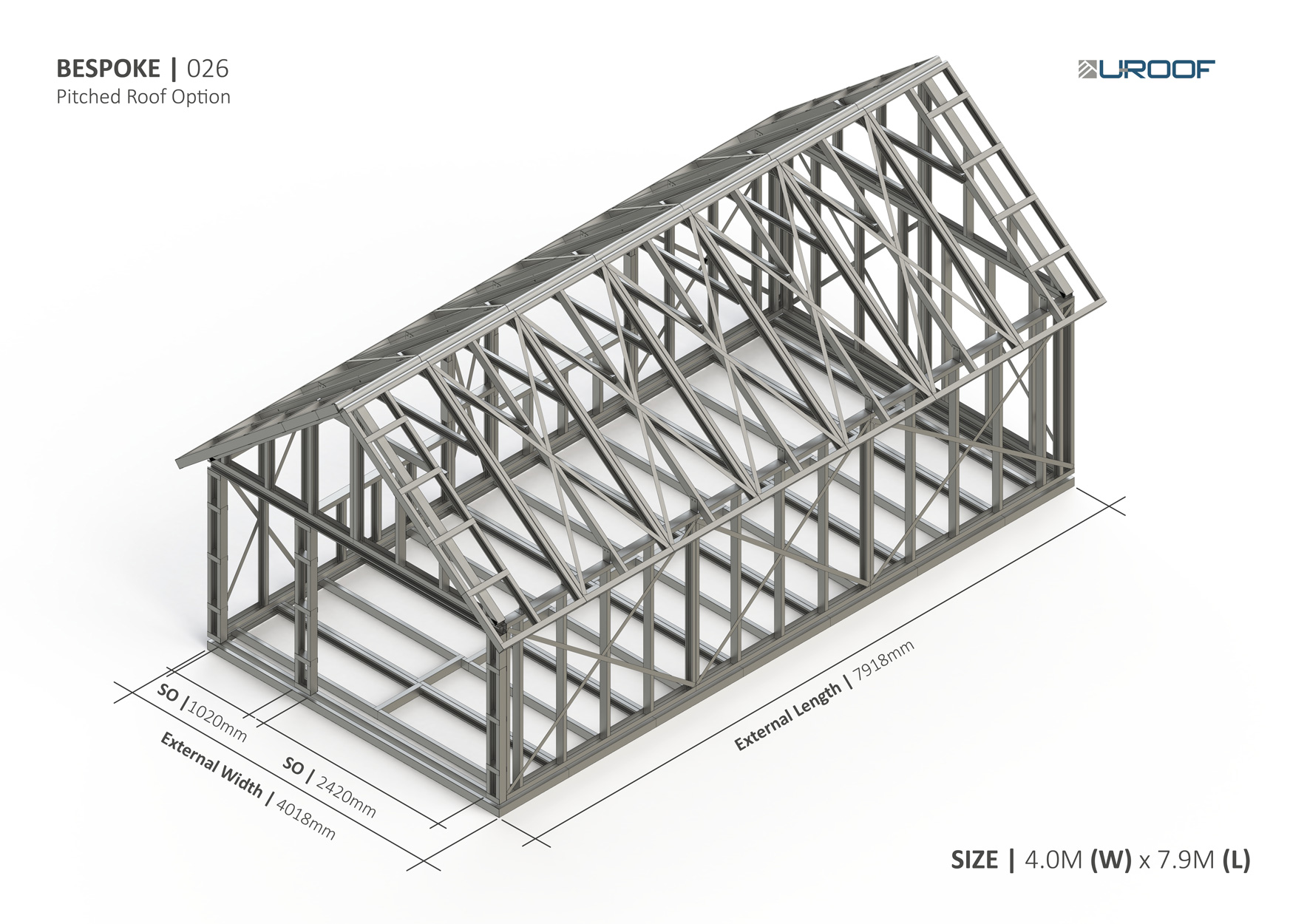

Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information
| Weight | 1390 kg |
|---|---|
| Dimensions | 7198 × 4018 × 4000 mm |

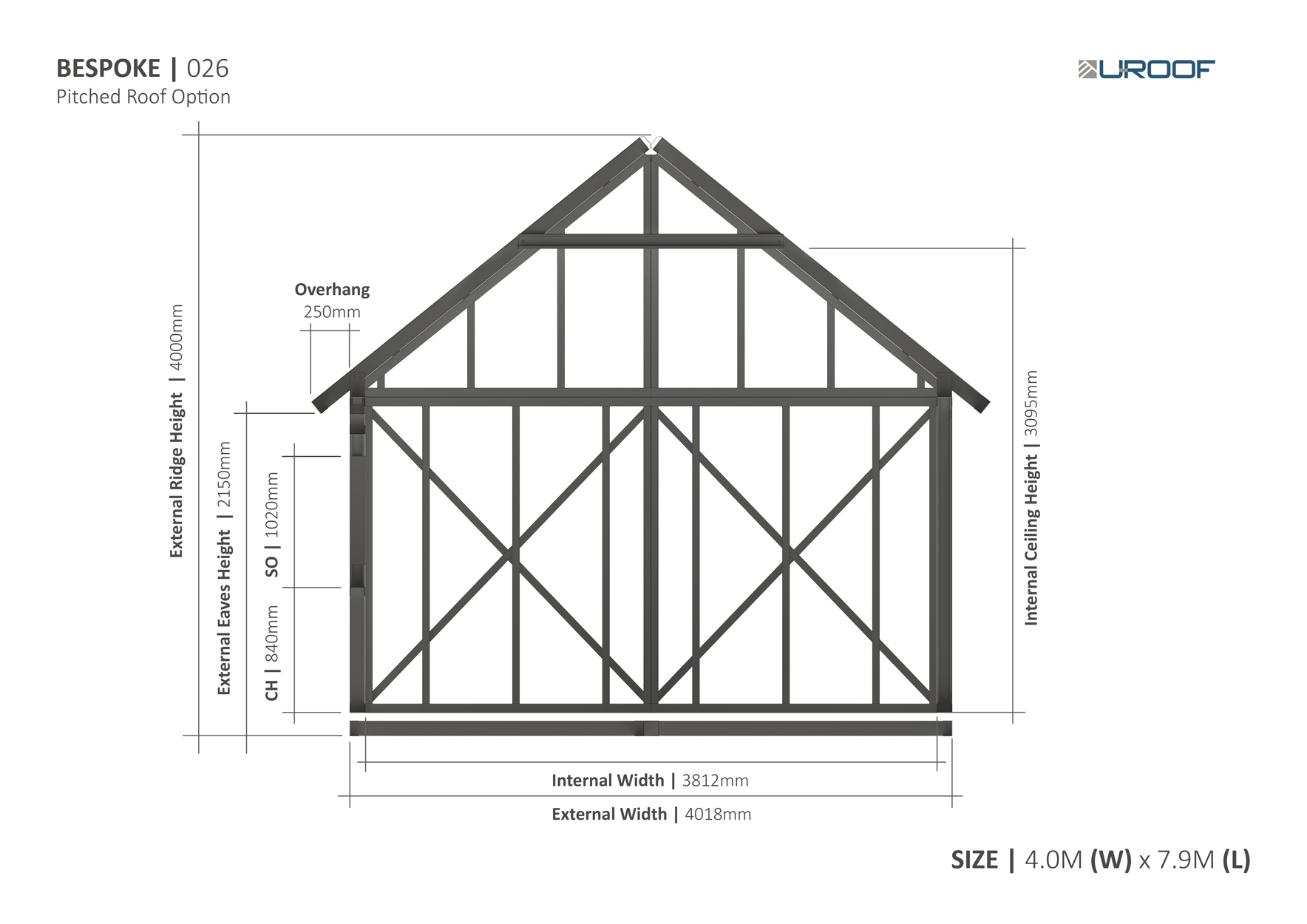

| External steel frame size | 4018mm (w) x 7918mm (l) |
| Internal steel frame size | 3812mm (w) x 7712mm (l) |
| External steel frame ridge height | 4000mm |
| External steel frame eaves height | 2150mm |
| Internal steel frame ceiling height (vaulted) | 3095 |
| Roof Pitch | 39 degrees |
| Front & Rear Overhang | 191mm |
| LHS & RHS Overhang | 250mm |
