Bespoke Garden Room | Bespoke 016


Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room

SKU: bespoke016 Category:


All of our frames are-prefabricated and will arrive to site in panel form.

The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.

A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.

Additional information

Weight 611 kg
Dimensions 2900 × 6010 × 2288 mm

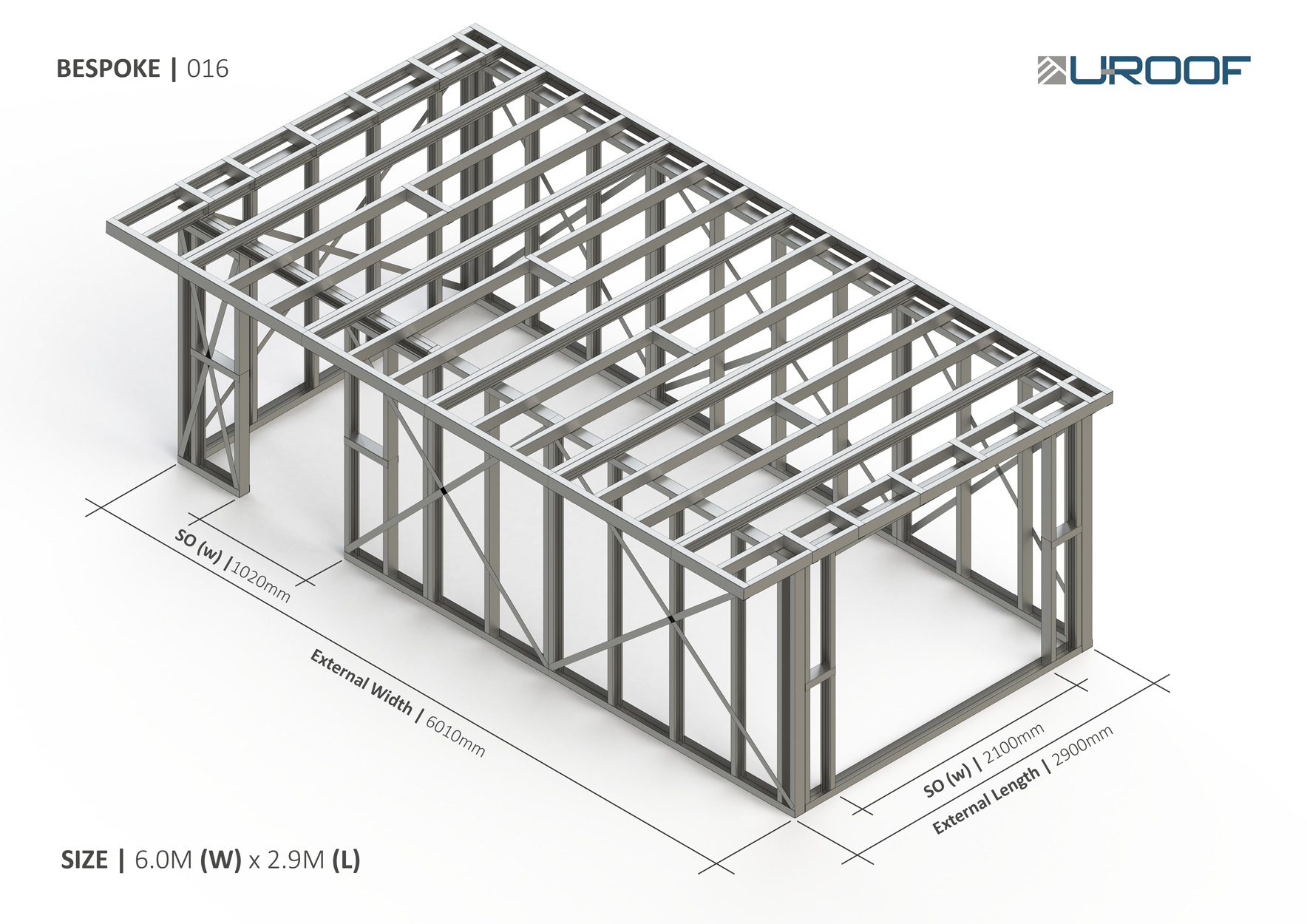

External steel frame size

6010mm (w) x 2900mm (l)

Internal steel frame size

5804mm (w) x 2694mm (l)

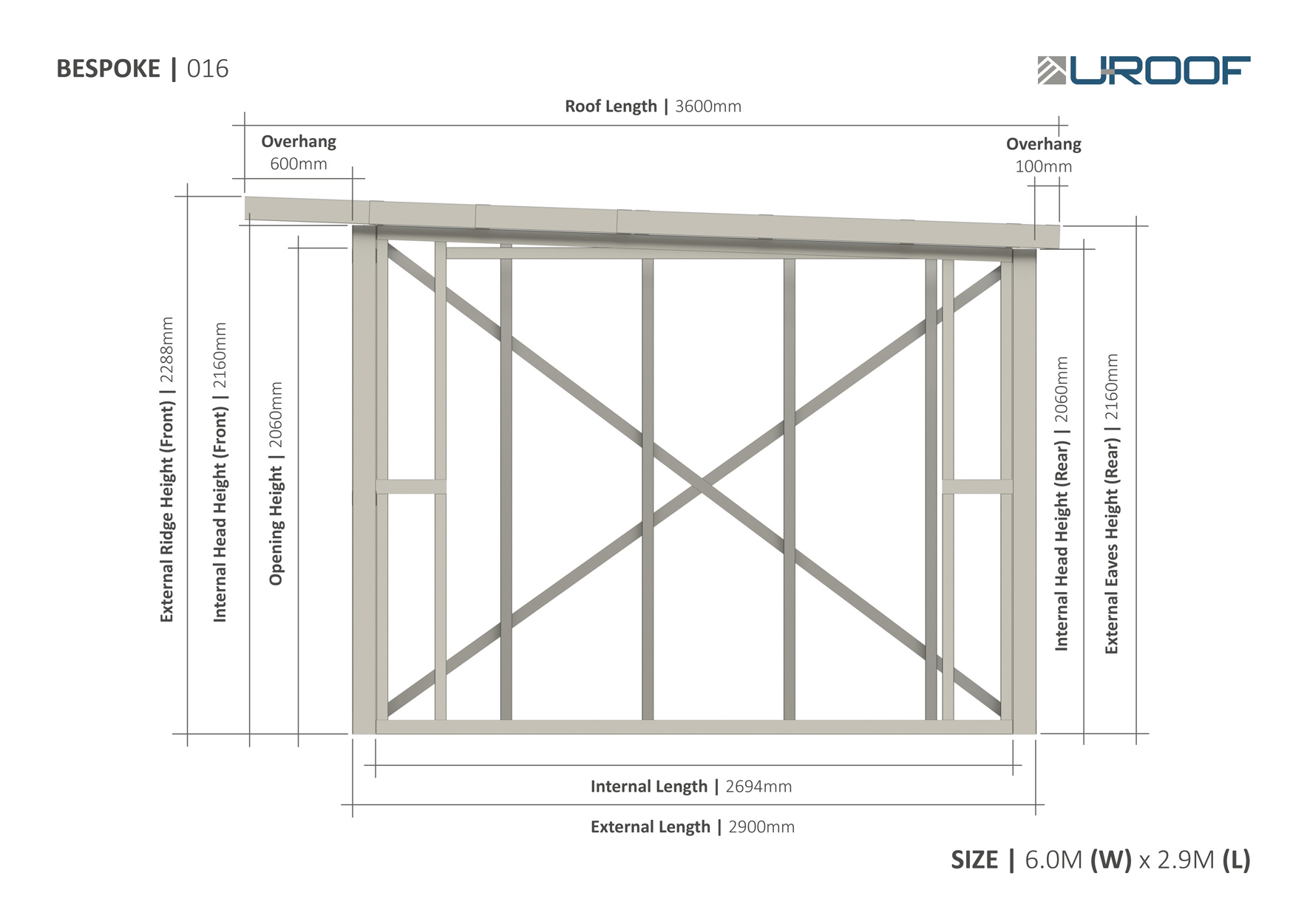

External steel frame height (highest point)


External steel frame height (lowest point)


Front structural opening size

1020mm (w) x 2060mm (h)

Side structural opening size

2100mm (w) x 2015mm (h)

Front Overhang


Rear, LHS & RHS Overhang
