Bespoke Garden Room | Bespoke 026 Flat
£3,968.86
Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information
| Weight | 1218 kg |
|---|---|
| Dimensions | 7198 × 4018 × 2430 mm |

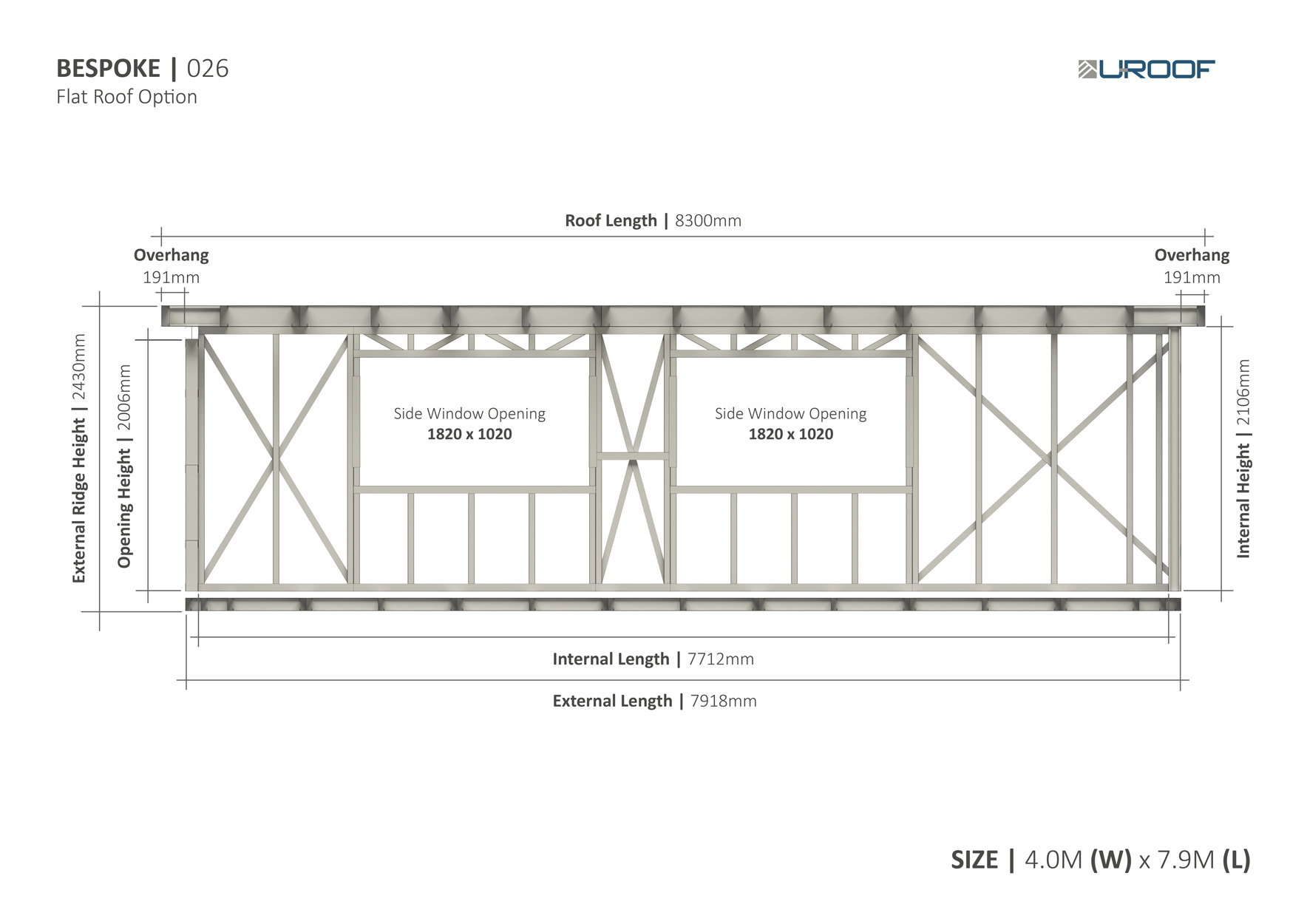

| External steel frame size | 4018mm (w) x 7918mm (l) |
| Internal steel frame size | 3812mm (w) x 7712mm (l) |
| External steel frame height (highest point) | 2430mm |
| Internal steel frame height (lowest point) | 2106mm |
| Front elevation structural opening size 1 (LHS Door) | 1020mm (w) x 2006mm (h) |
| Front elevation structural opening size 1 (RHS Door) | 2420mm (w) x 2006mm (h) |
| Side elevation (left) structural opening size x2 (Window) | 1820mm (w) x 1020mm (h) |
| Front, Rear, LHS & RHS Overhang | 191mm |
