Bespoke Garden Room | Bespoke 024
£3,330.23

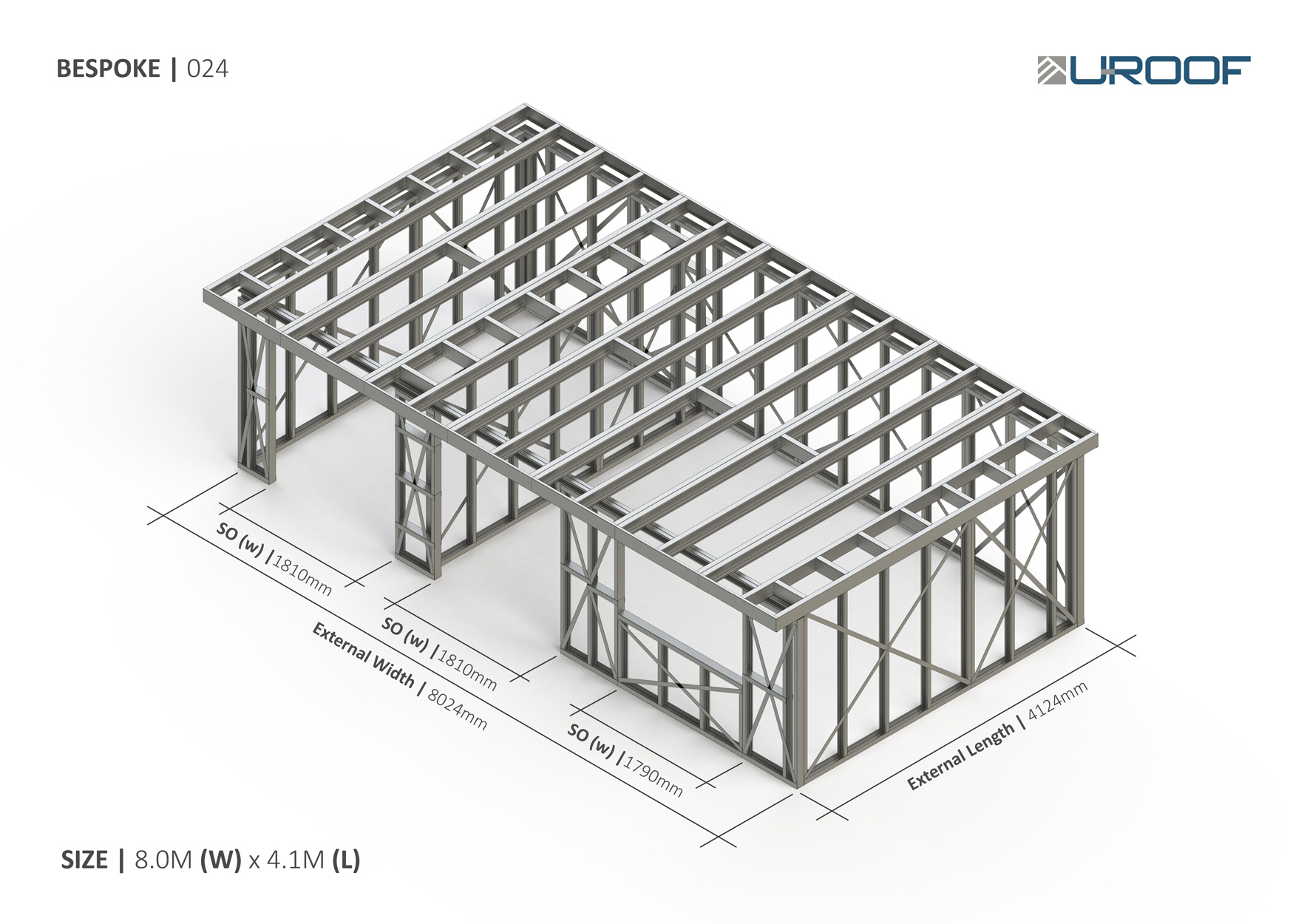

Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information
| Weight | 1032 kg |
|---|---|
| Dimensions | 4124 × 8024 × 2368 mm |
| External steel frame size | 8024mm (w) x 4124mm (l) |
| Internal steel frame size | 7818mm (w) x 3918mm (l) |
| External steel frame height (highest point) | 2368mm |
| External steel frame height (lowest point) | 2200mm |
| Front structural opening size 1 (LHS) | 1810mm (w) x 2100mm (h) |
| Front structural opening size 1 (CENTRE) | 1810mm (w) x 2100mm (h) |
| Front structural opening size 2 (RHS) | 1790mm (w) x 1200mm (h) |
| Front Overhang | 400mm |
| Rear, LHS & RHS Overhang | 100mm |
