Bespoke Garden Room | Bespoke 023


Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room

SKU: bespoke023 Category:


All of our frames are-prefabricated and will arrive to site in panel form.

The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.

A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.

Additional information

Weight 962 kg
Dimensions 4000 × 6000 × 2566 mm

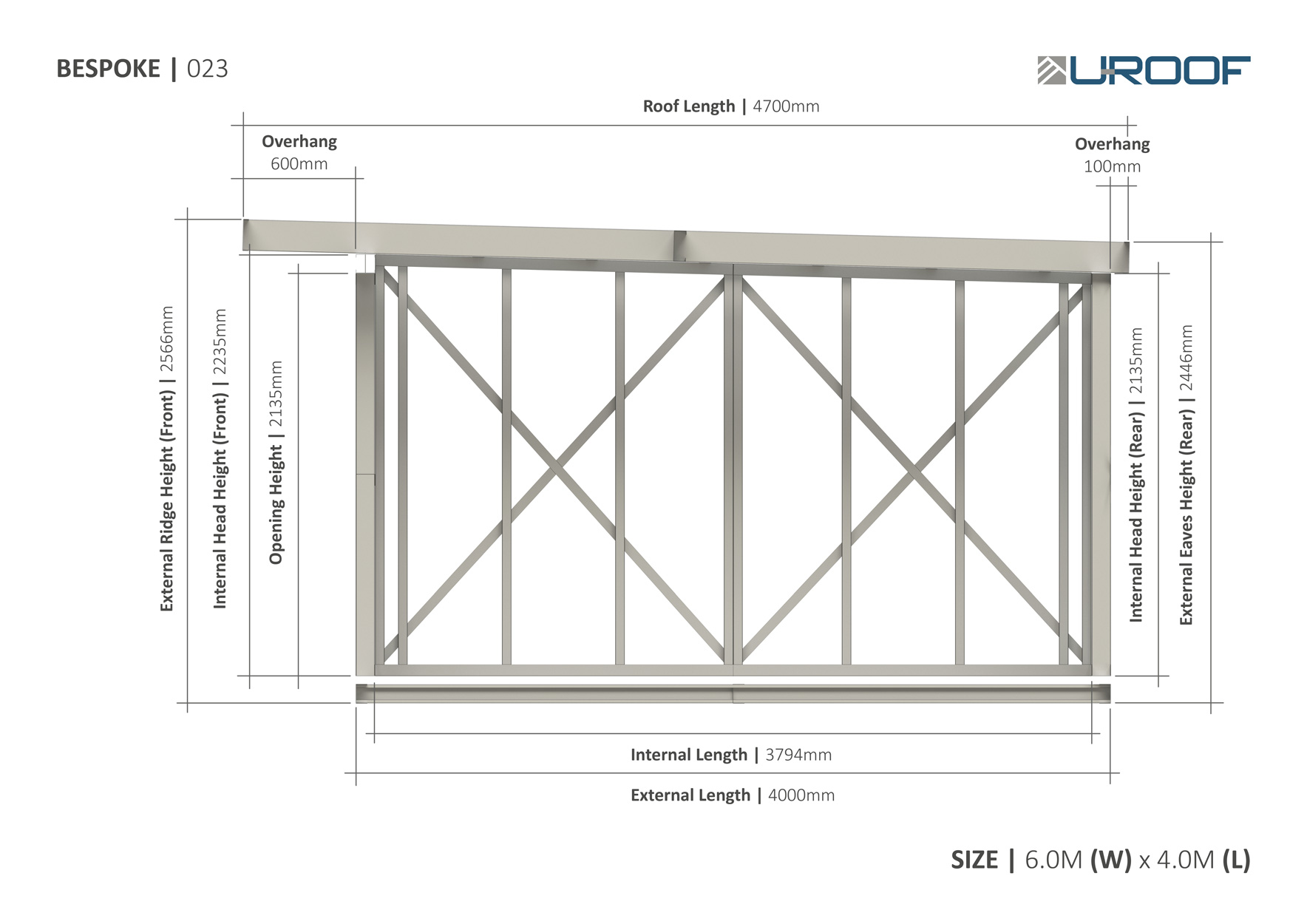

External steel frame size

6000mm (w) x 4000mm (l)

Internal steel frame size

5794mm (w) x 3794mm (l)

External steel frame height (highest point)


Internal steel frame height (lowest point)


Front structural opening size

2420mm (w) x 2135mm (h)

Side structural opening size

1050mm (w) x 2110mm (h)

Front Overhang


Rear, LHS & RHS Overhang
