Bespoke Garden Room | Bespoke 006


Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room

SKU: bespoke006 Category:


All of our frames are-prefabricated and will arrive to site in panel form.

The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.

A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.

Additional information

Weight 854 kg

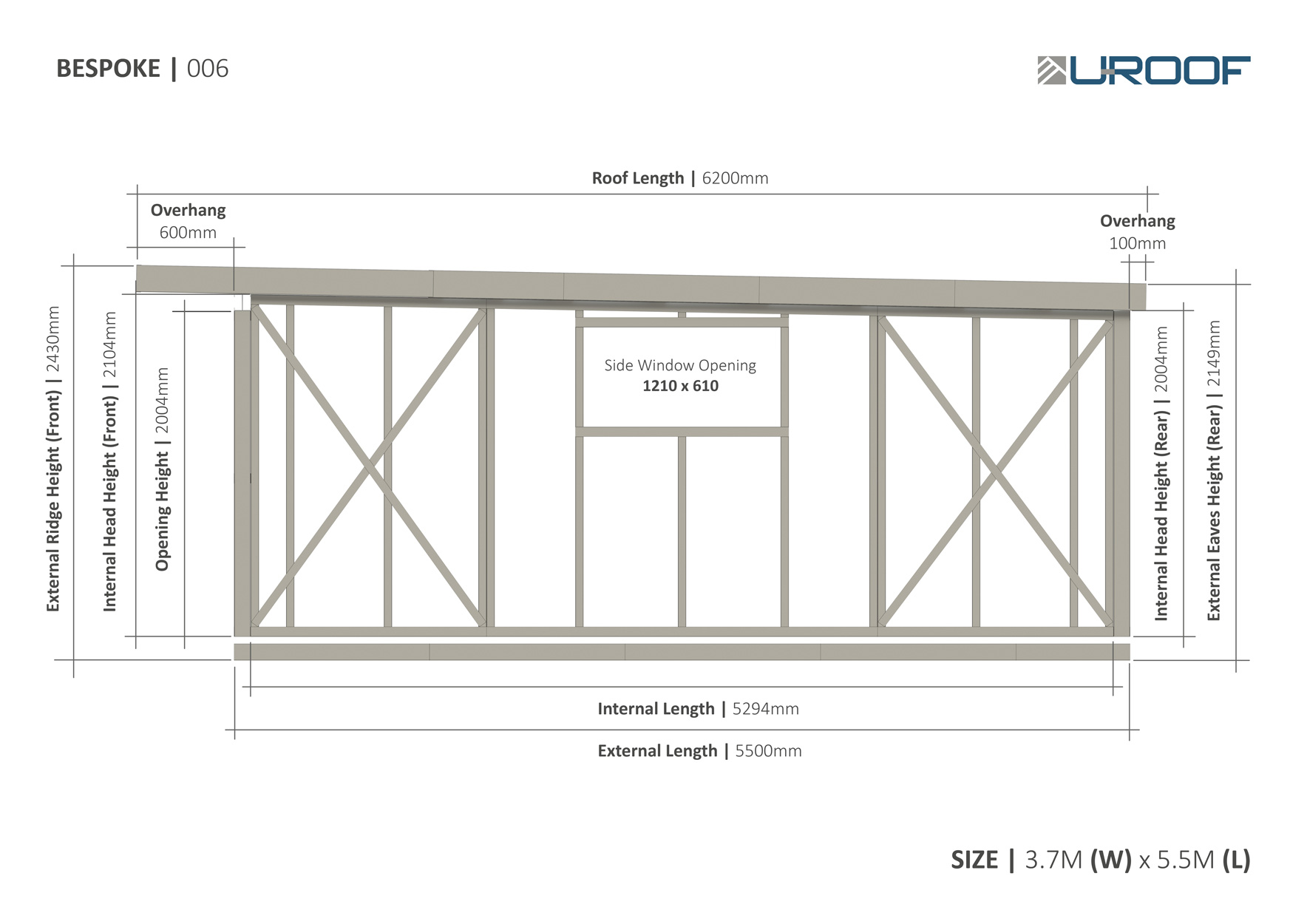

Dimensions 5500 × 3700 × 2430 mm
External steel frame size

3700mm (w) x 5500mm (l)

Internal steel frame size

3494mm (w) x 5294mm (l)

External steel frame height (highest point)


External steel frame height (lowest point)


Front structural opening size

2420mm (w) x 2004mm (h)

Side structural opening size

1210mm (w) x 610mm (h)

Front Overhang


Rear, LHS & RHS Overhang
