Bespoke Garden Room | Bespoke 001

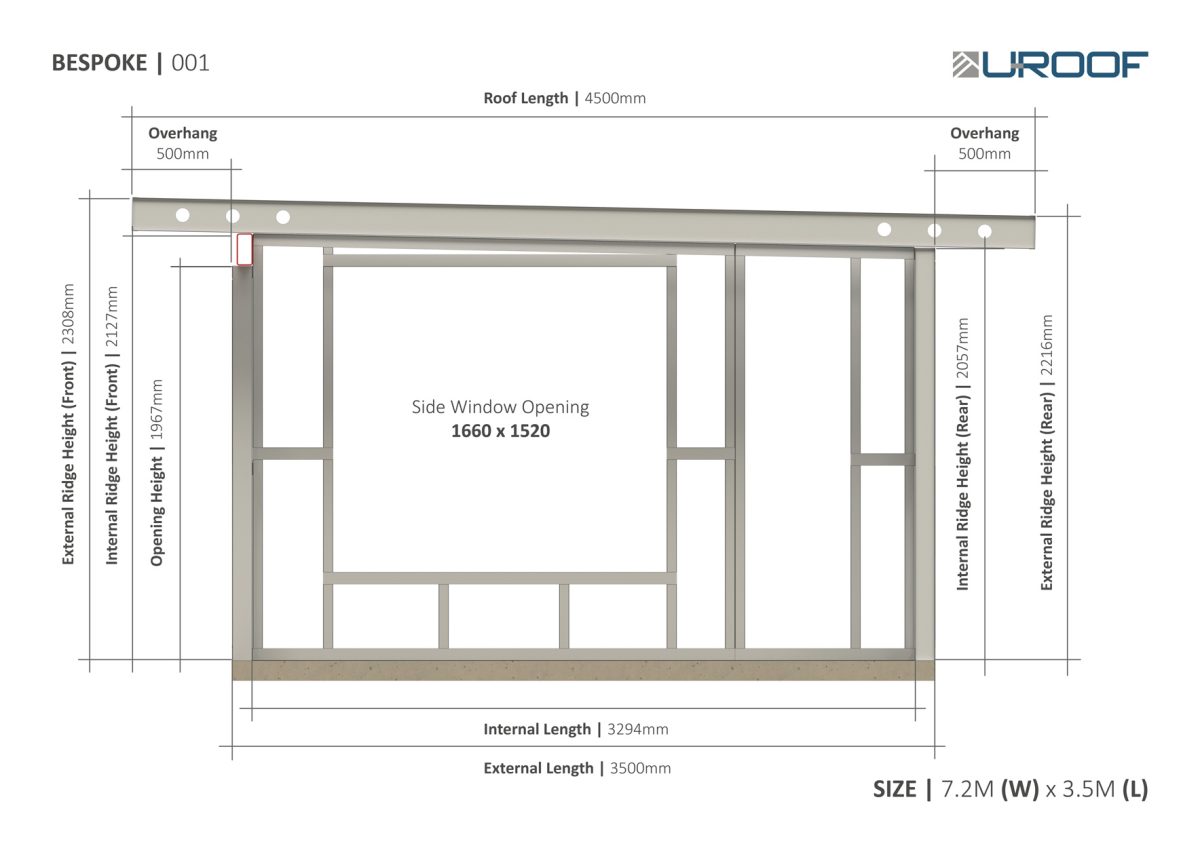

7200mm (w) x 3500mm (l) Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
|Dimensions||3500 × 7200 × 2308 mm|
|External steel frame size||
7200mm (w) x 3500mm (l)
|Internal steel frame size||
6994mm (w) x 3294mm (l)
|External steel frame height (highest point)||
|External steel frame height (lowest point)||
|Front structural opening size||
3620mm (w) x 1967mm (h)
|Side structural opening size (LHS)||
1660mm (w) x 1520mm (h)
|Front, Rear & LHS Overhang||
