Bespoke Garden Room | Bespoke 029


Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room

SKU: bespoke029 Category:


All of our frames are-prefabricated and will arrive to site in panel form.

The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.

A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.

Additional information

Weight 646 kg
Dimensions 2900 × 3850 × 2412 mm

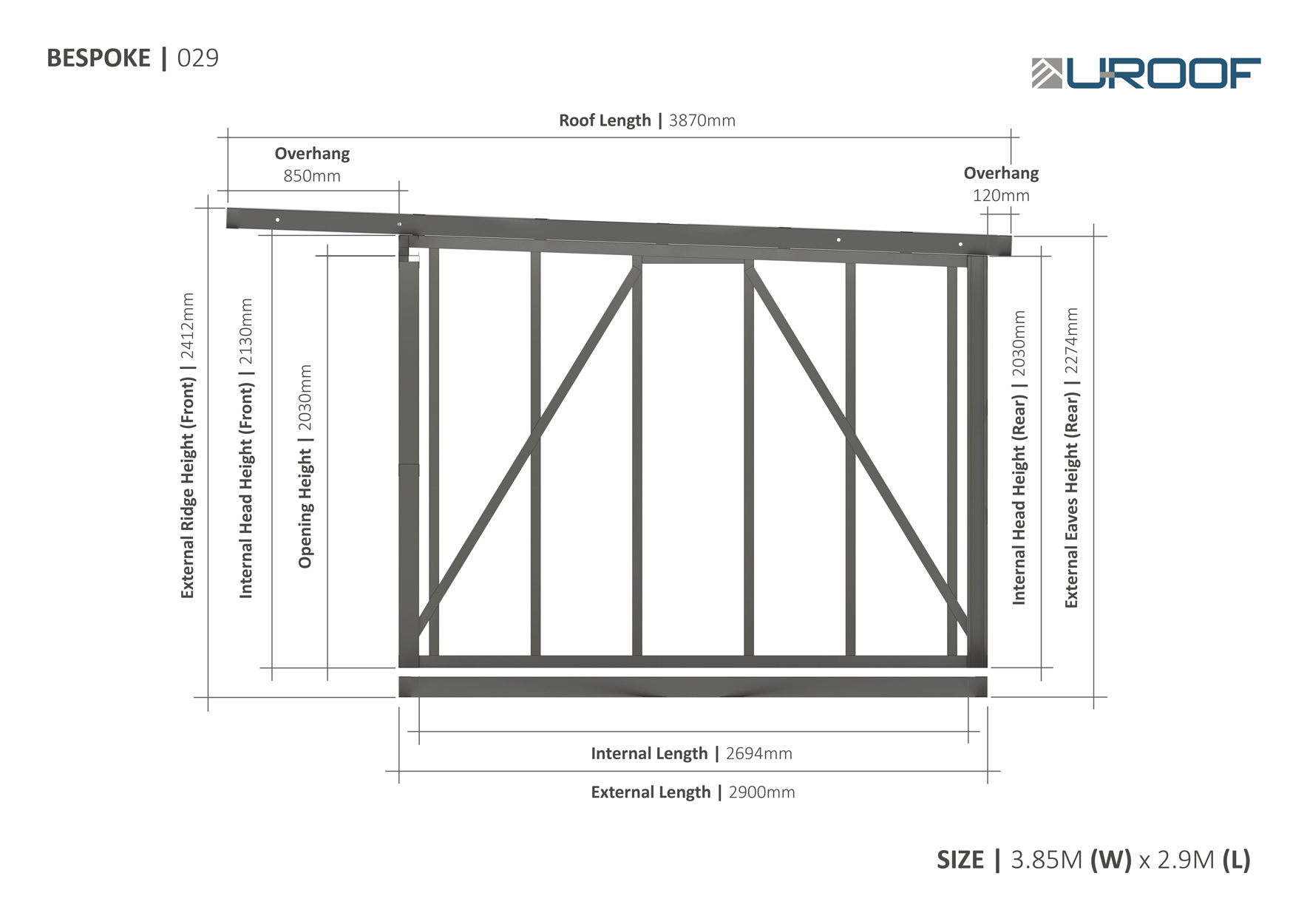

External steel frame size

3850mm (w) x 2900mm (l)

Internal steel frame size

3644mm (w) x 2694mm (l)

External steel frame height (at highest point)


External steel frame height (at lowest point)


Front structural opening size (left)

930mm (w) x 2030mm (h)

Front structural opening size (right)

930mm (w) x 2030mm (h)

Front Overhang


Rear, LHS & RHS Overhang
