Bespoke Garden Room | Bespoke 032
£2,116.75

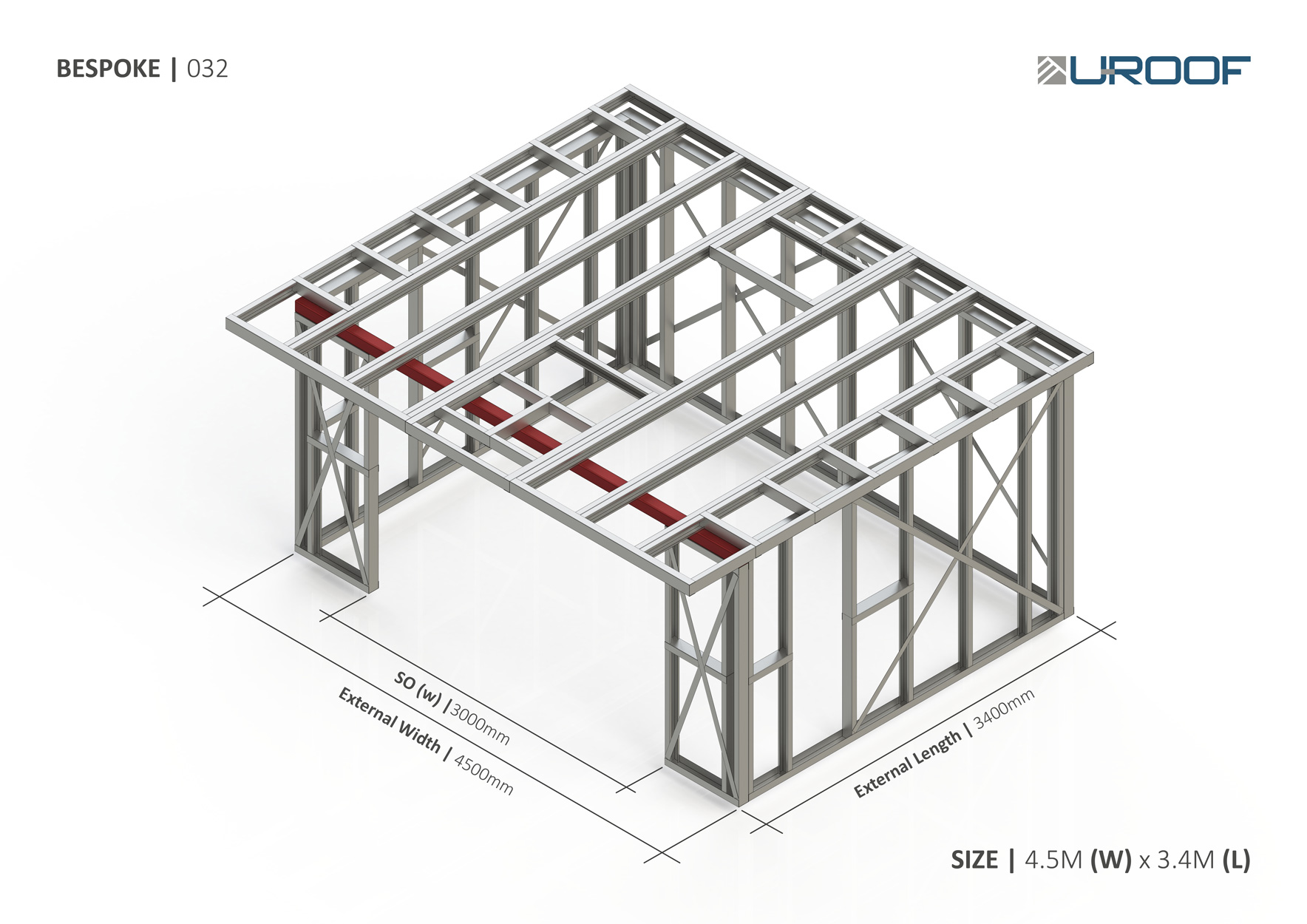

Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information
| Weight | 506 kg |
|---|---|
| Dimensions | 4500 × 3400 × 2406 mm |

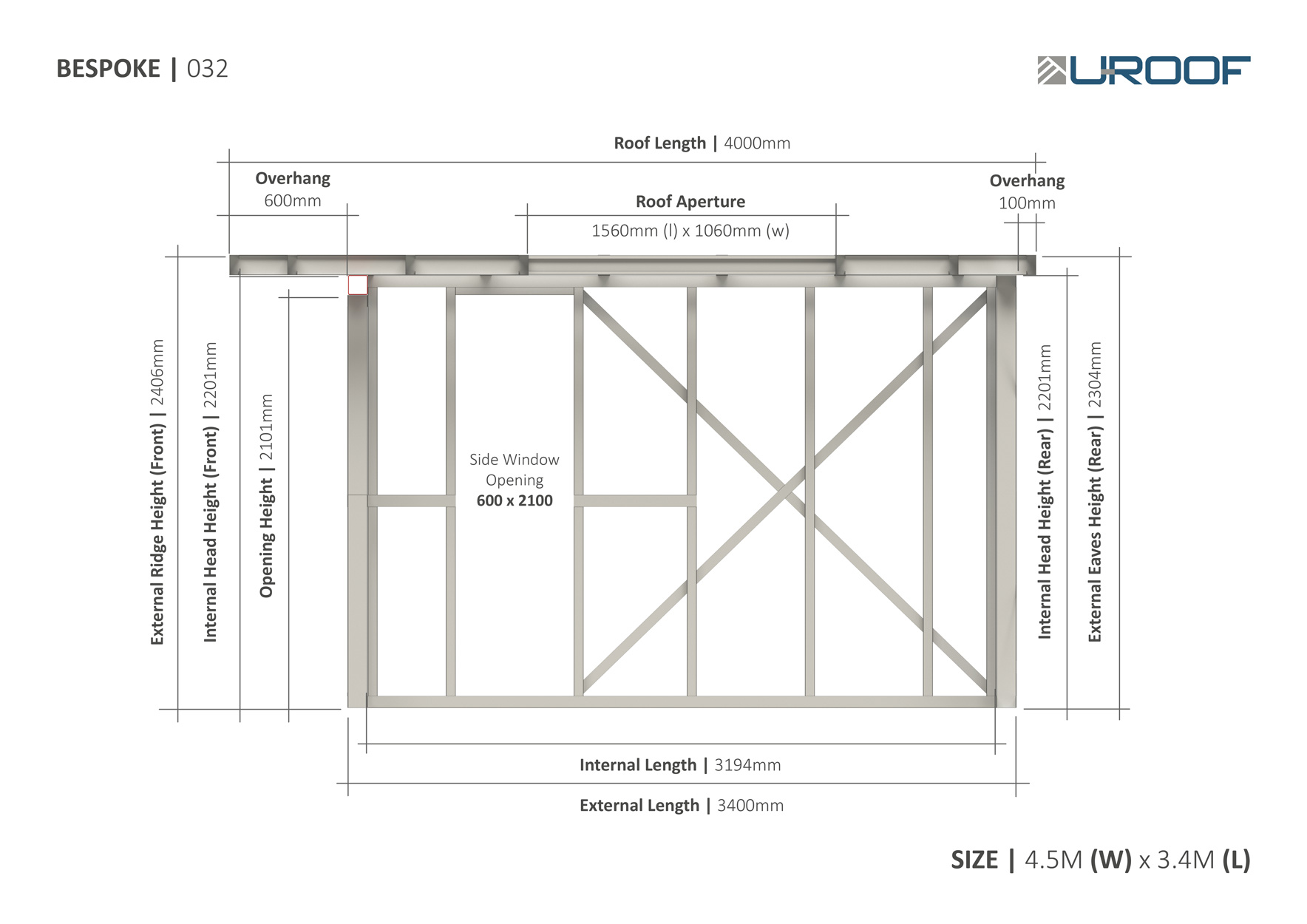

| External steel frame size | 4500mm (w) x 3400mm (l) |
| Internal steel frame size | 4294mm (w) x 3194mm (l) |
| External steel frame height (at highest point) | 2406mm |
| External steel frame height (at lowest point) | 2304mm |
| Front structural opening size | 3000mm (w) x 2101mm (h) |
| Front Overhang | 600mm |
| Rear, LHS & RHS Overhang | 100mm |
