Bespoke Garden Room | Bespoke 002


Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room

SKU: bespoke002 Category:


All of our frames are-prefabricated and will arrive to site in panel form.

The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.

A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery. These documents are also sent digitally via email once the design is finalised.

Additional information

Weight 659 kg
Dimensions 2800 × 5800 × 2357 mm
External steel frame size

5800mm (w) x 2800mm (l)

Internal steel frame size

5594mm (w) x 2594mm (l)

External steel frame height (highest point)


External steel frame height (lowest point)

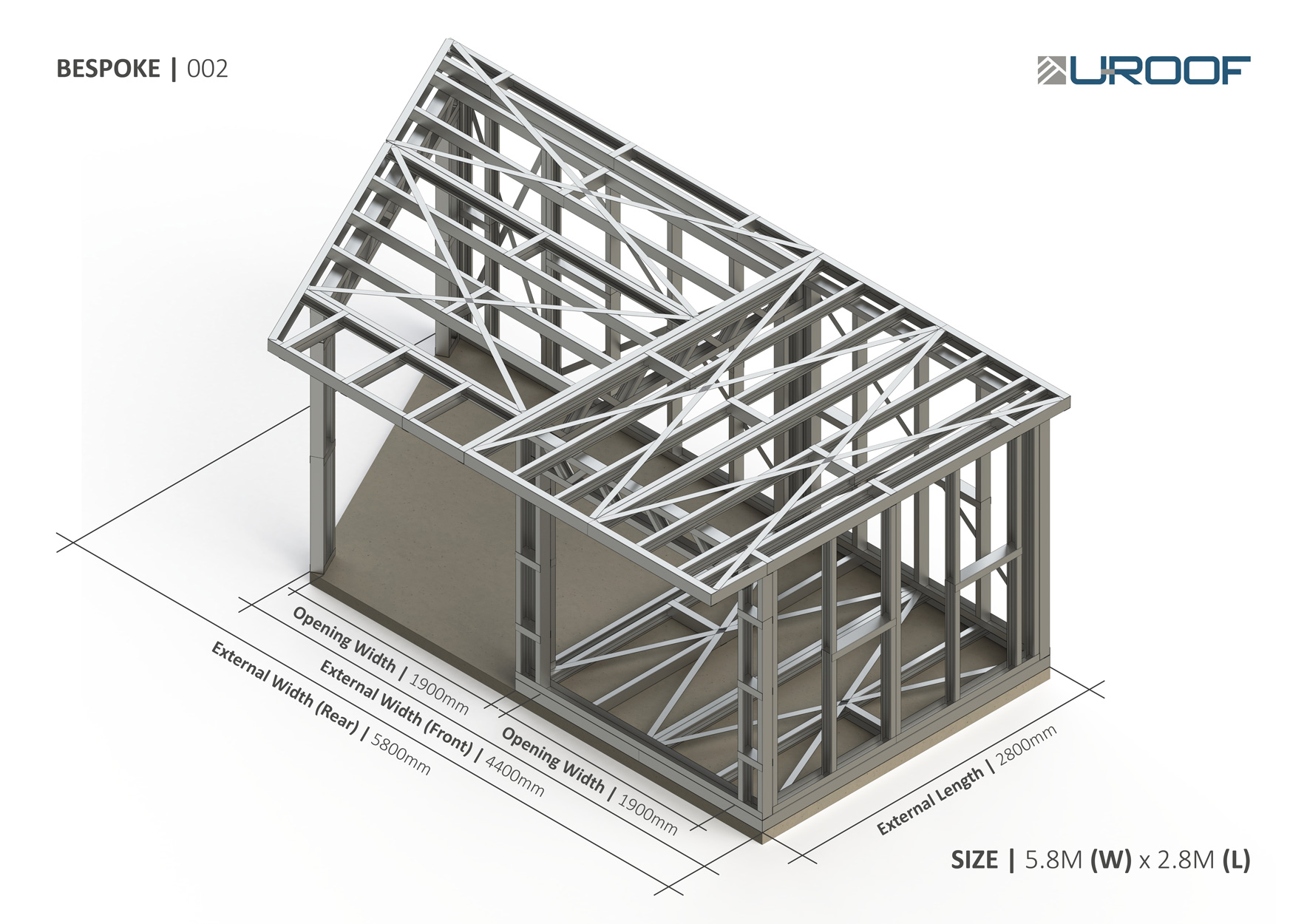

Front structural opening size (RHS)

1900mm (w) x 1848mm (h)

Front structural opening size (LHS)

1900mm (w) x 2195mm (h)

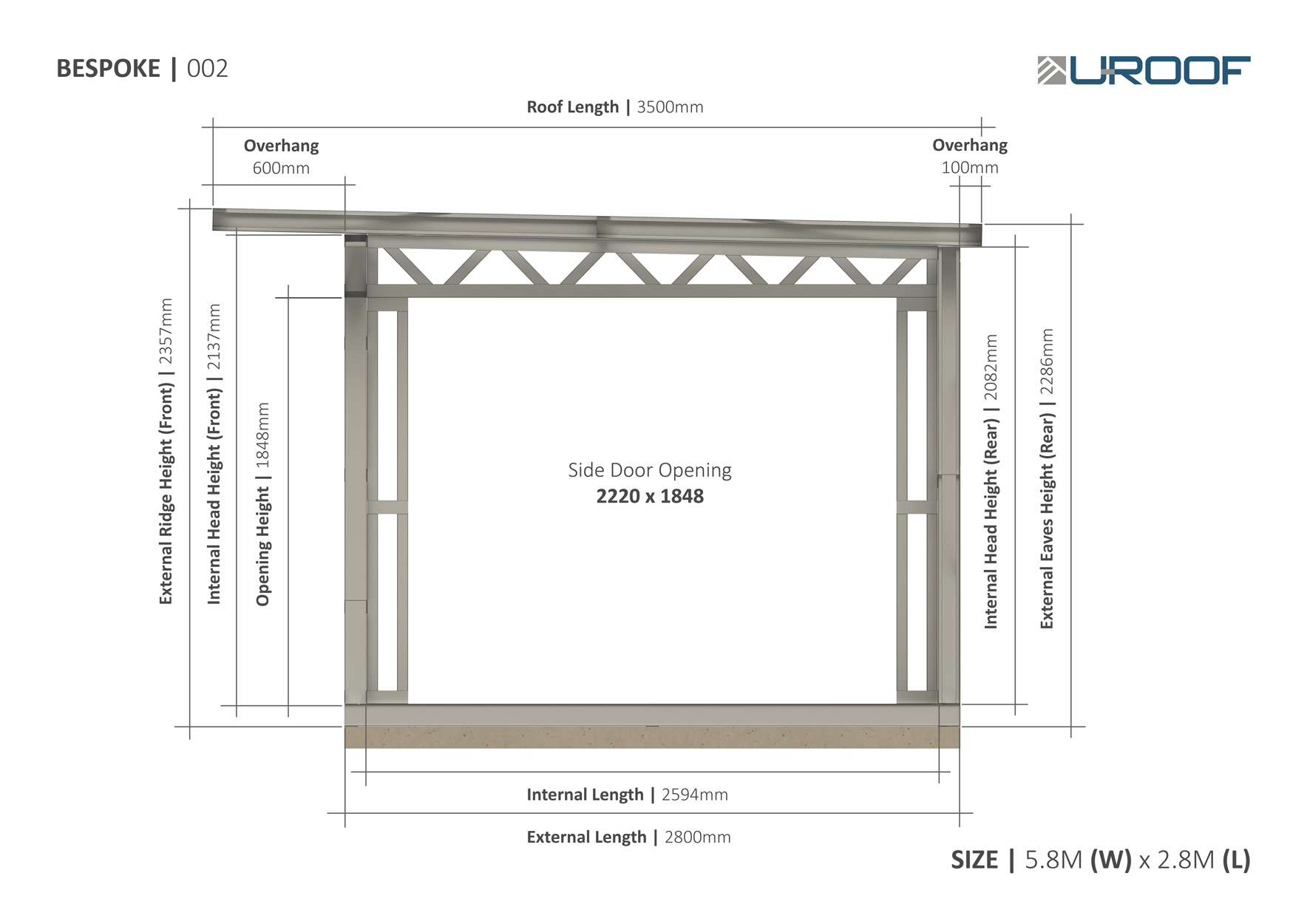

Side structural opening size (Internal)

2220mm (w) x 1848mm (h)

Side structural opening size (External)

2475mm (w) x 1950mm (h)

Front Overhang


Rear, LHS & RHS Overhang
