Bespoke Garden Room | Bespoke 036
£3,818.10
Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information
| Weight | 1085 kg |
|---|---|

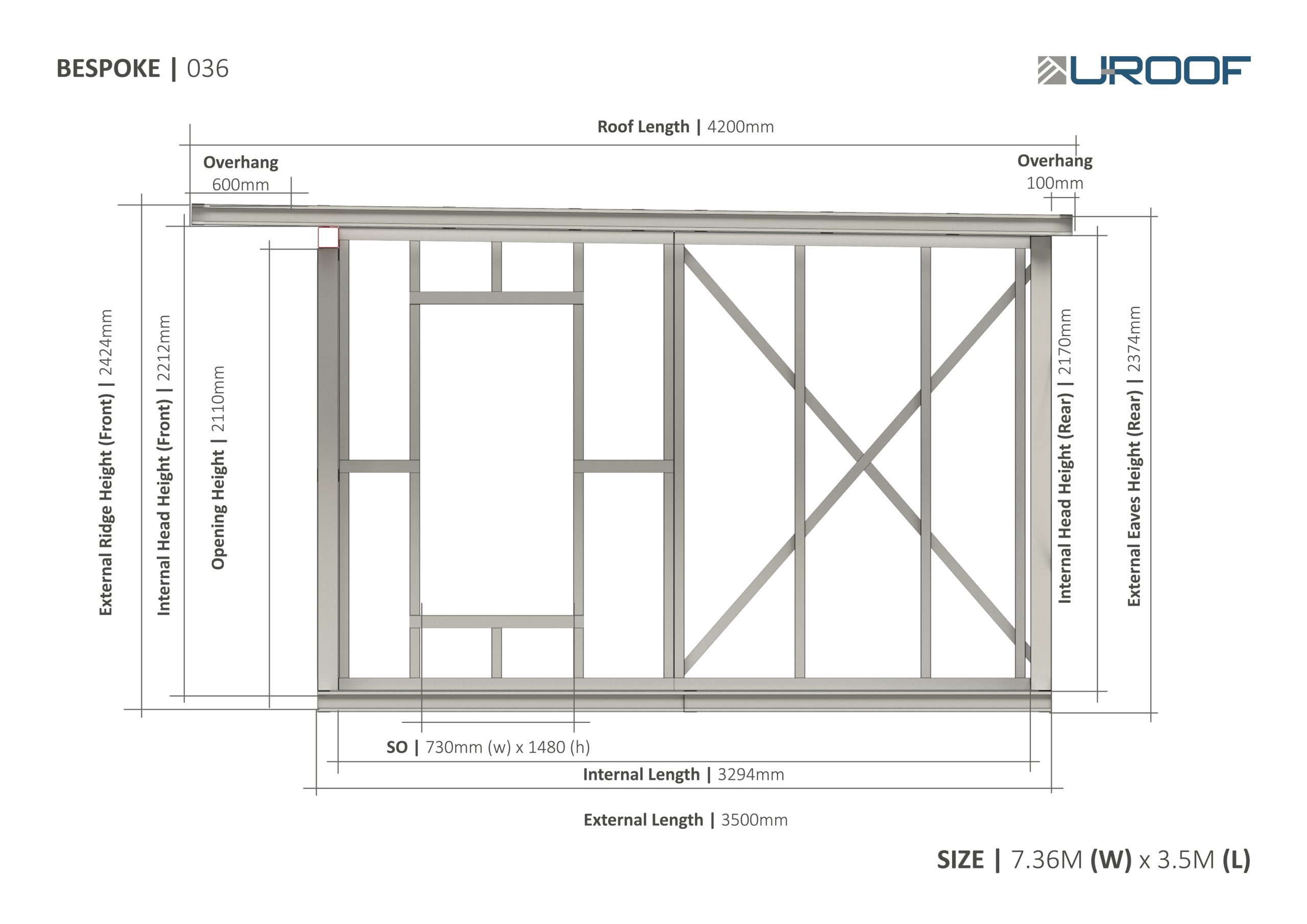

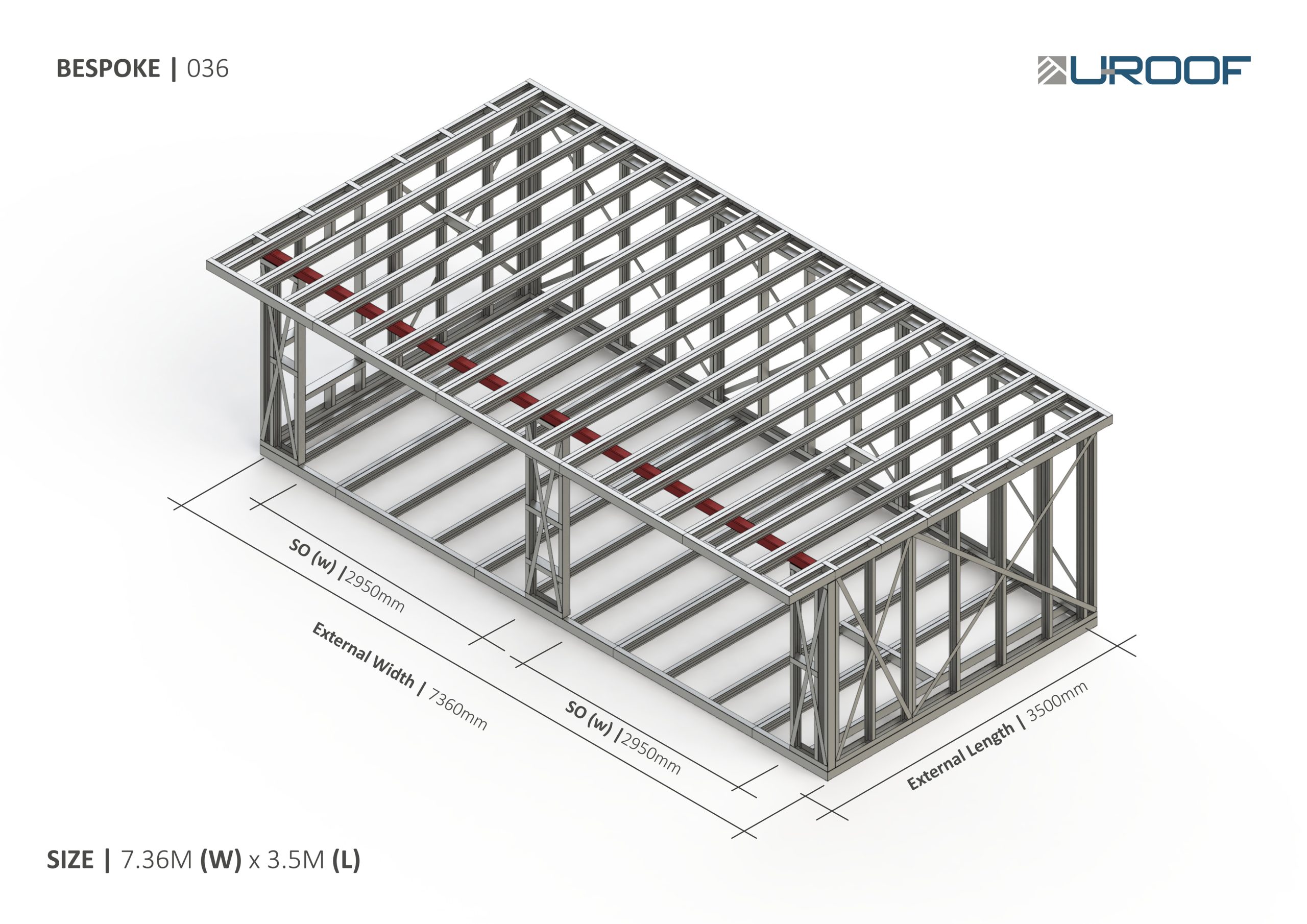

| External steel frame size | 7360mm (w) x 3500mm (l) |
| Internal steel frame size | 7154mm (w) x 3294mm (l) |
| External steel frame height (at highest point) | 2424mm |
| External steel frame height (at lowest point) | 2374mm |
| Front structural opening sizes | 2950mm (w) x 2110mm (h) |
| Side structural opening size | 730mm (w) x 1480mm (h) |
| Front Overhang | 600mm |
| Rear, LHS & RHS Overhang | 100mm |
