Bespoke Garden Room | Bespoke 043
£4,276.83

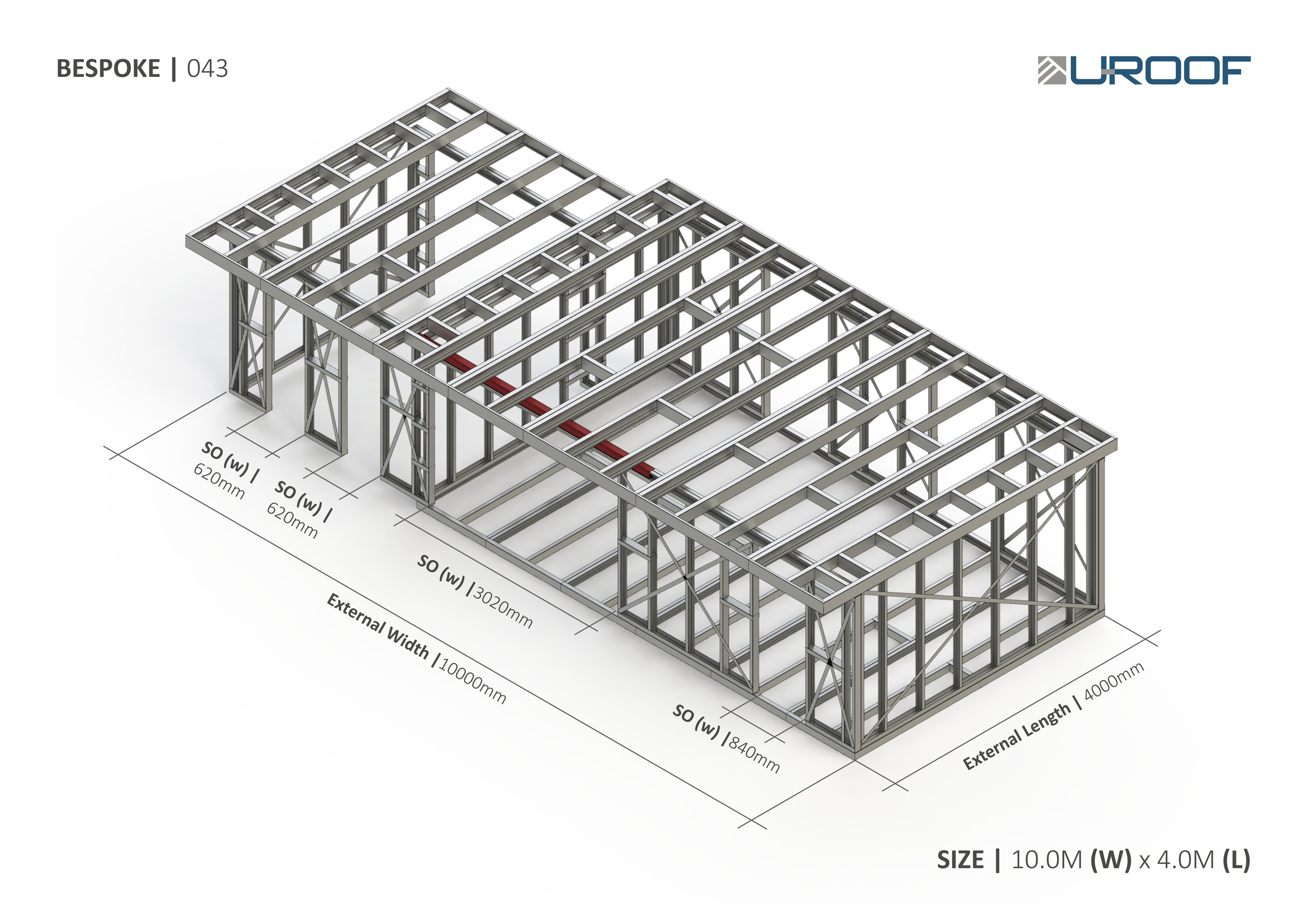

Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information
| Weight | 1.368 kg |
|---|---|
| Dimensions | 4000 × 10000 × 2448 mm |
| External steel frame size | 10000mm (w) x 4000mm (l) |
| Internal steel frame size | 9794mm (w) x 3794mm (l) |

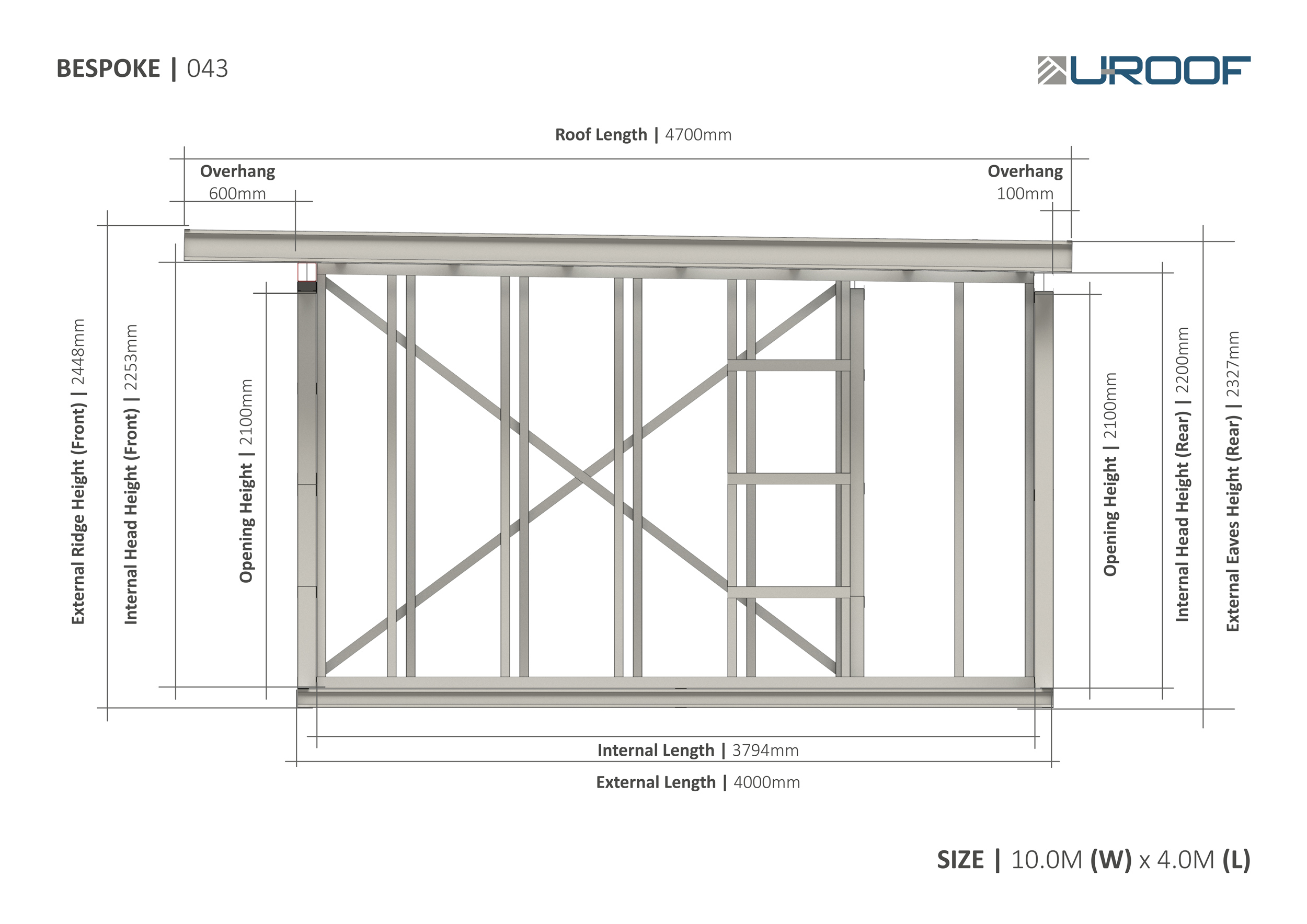

| External steel frame height (at highest point) | 2448mm |
| External steel frame height (at lowest point) | 2327mm |
| Front structural opening size 1 | 840mm (w) x 2100mm (h) |
| Front structural opening size 2 | 3020mm (w) x 2100mm (h) |
| Front structural opening sizes 3 | 620mm (w) x 2100mm (h) |
| Rear structural opening sizes 1 | 1020mm (w) x 2100mm (h) |
| Rear structural opening size 2 | 2420mm (w) x 2110mm (h) |
| Front Overhang | 600mm |
| Rear, LHS & RHS Overhang | 100mm |
