Bespoke Garden Room | Bespoke 045
£3,212.17

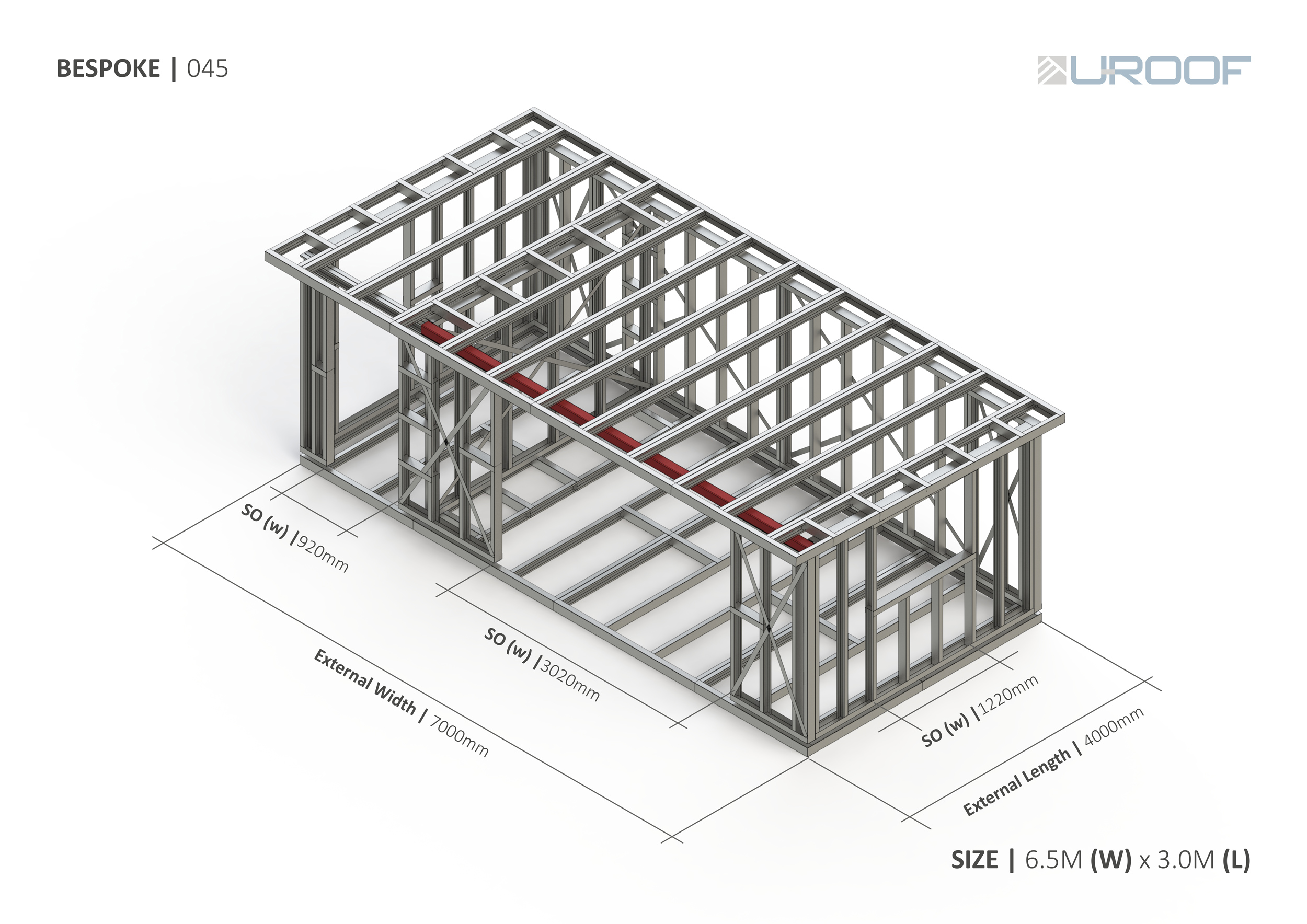

Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information
| Weight | 909 kg |
|---|---|
| Dimensions | 4000 × 7000 × 2433 mm |

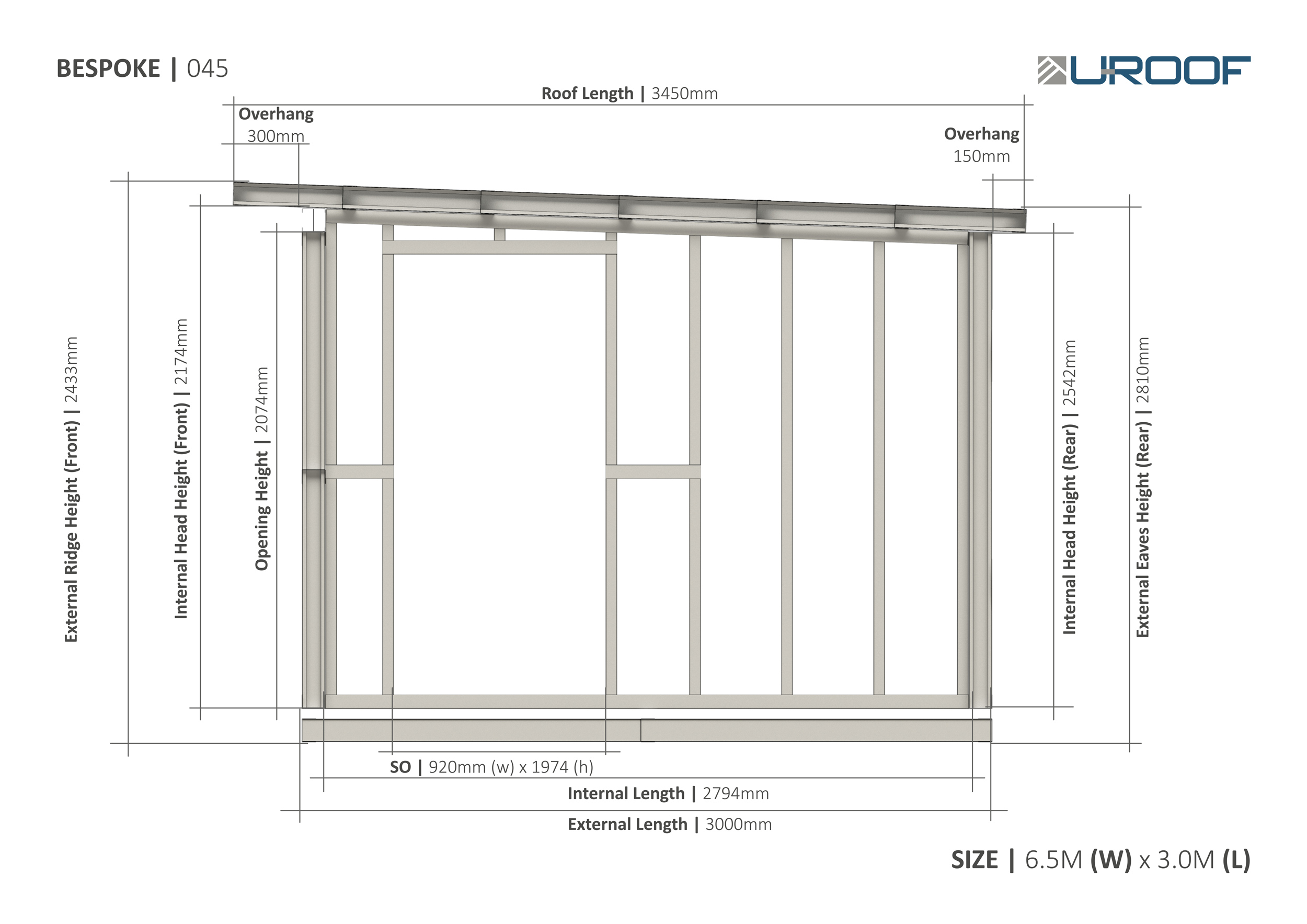

| External steel frame size | 6500mm (w) x 3000mm (l) |
| Internal steel frame size | 6294mm (w) x 2794mm (l) |
| External steel frame height (at highest point) | 2436mm |
| External steel frame height (at lowest point) | 2317mm |
| Front structural opening size 1 | 3020mm (w) x 2074mm (h) |
| Front structural opening size 2 | 920mm (w) x 2074mm (h) |
| Side structural opening size 1 | 1220mm (w) x 910mm (h) |
| Side structural opening size 2 | 920mm (w) x 1974mm (h) |
| Front Overhang | 300mm |
| Rear, LHS & RHS Overhang | 150mm |
