Bespoke Garden Room | Bespoke 046
£1,452.74

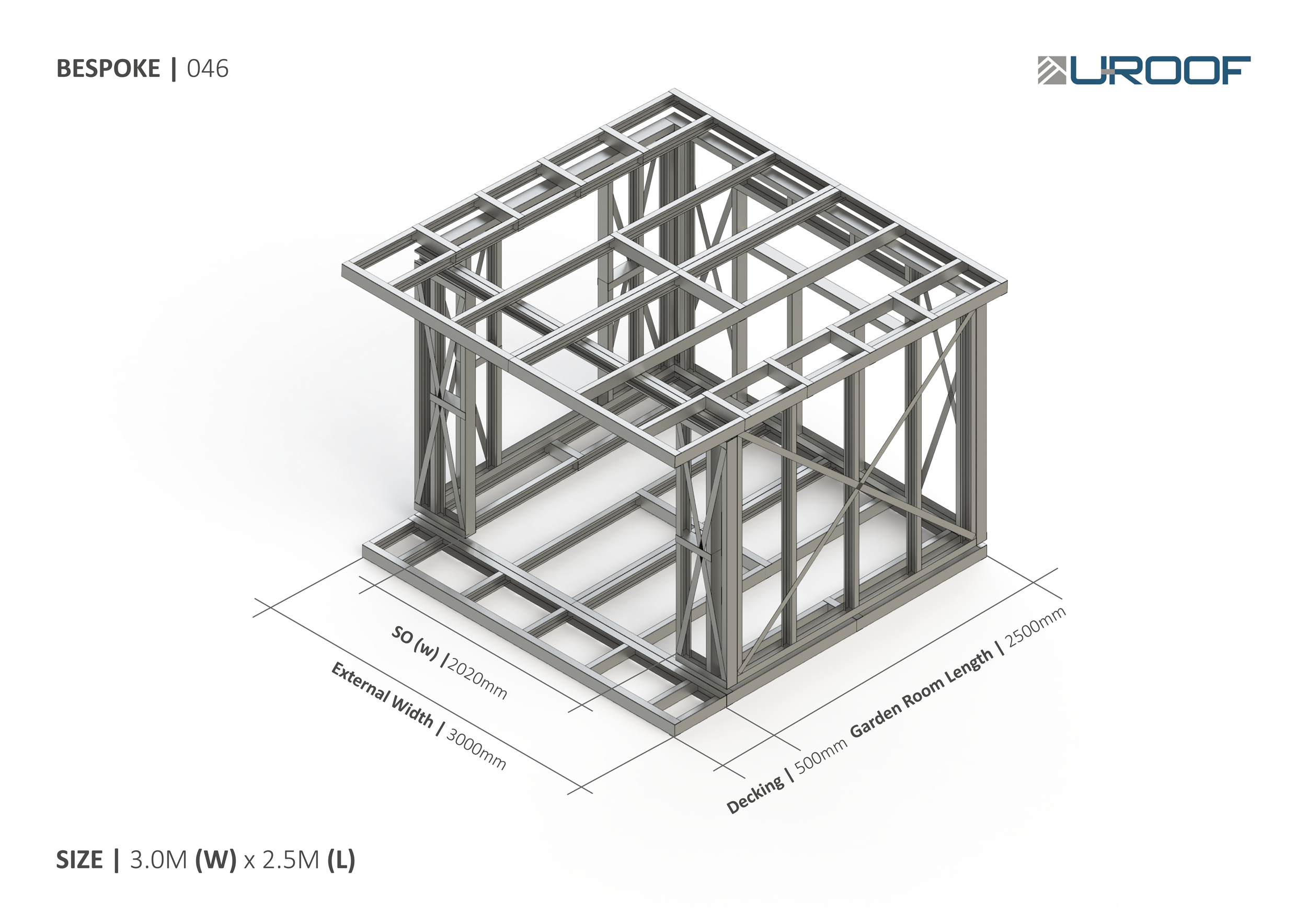

Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information
| Weight | 0.424 kg |
|---|---|
| Dimensions | 2500 × 3000 × 2433 mm |

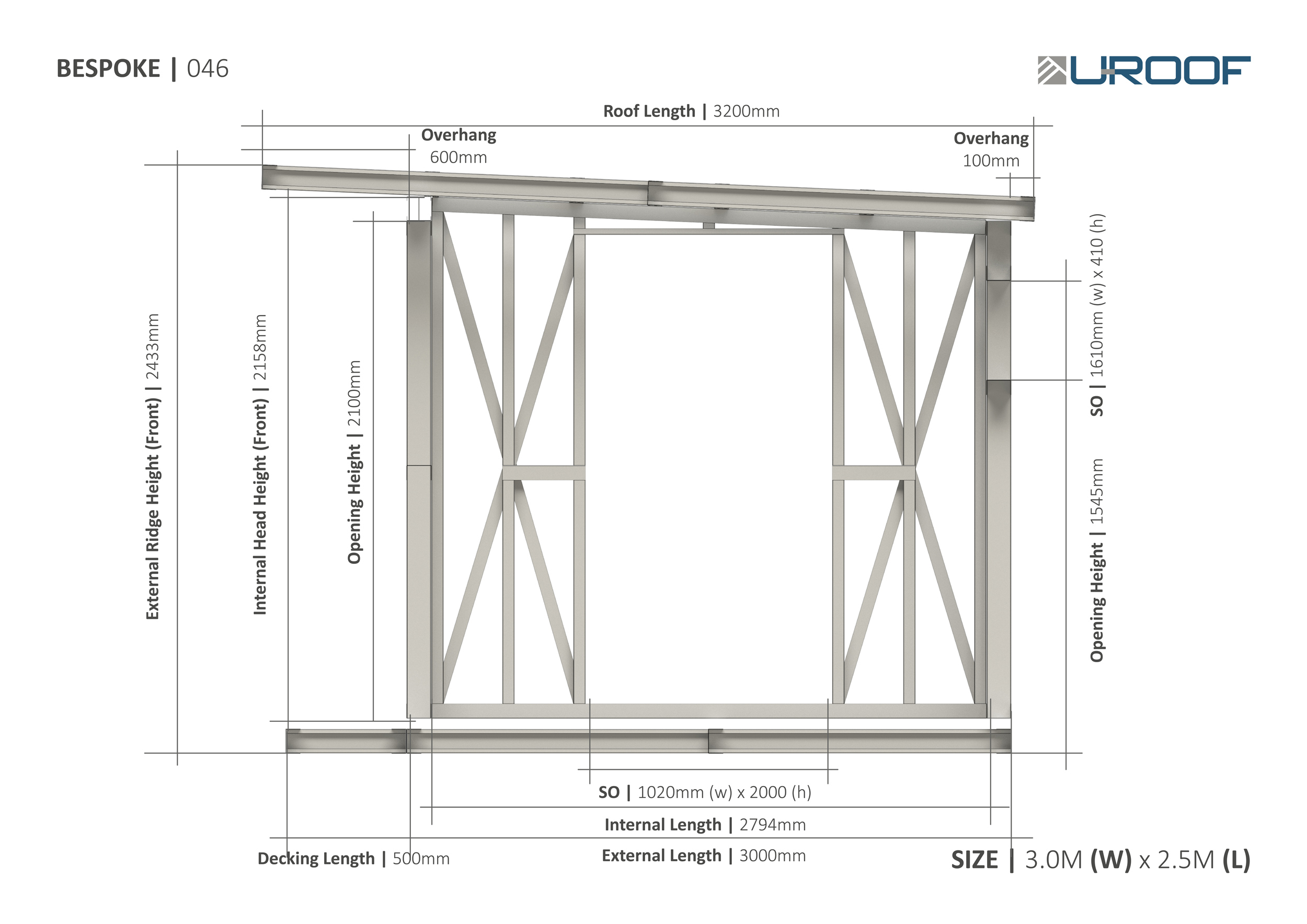

| External steel frame size | 3000mm (w) x 2500mm (l) |
| Internal steel frame size | 2794mm (w) x 2294mm (l) |
| External steel frame height (at highest point) | 2158mm |
| External steel frame height (at lowest point) | 2302mm |
| Front structural opening size | 2020mm (w) x 2058mm (h) |
| Side structural opening size | 1020mm (w) x 2000mm (h) |
| Rear structural opening size | 1610mm (w) x 410mm (h) |
| Front Overhang | 600mm |
| Rear, LHS & RHS Overhang | 100mm |
