Bespoke Garden Room | Bespoke 016
£2,111.59

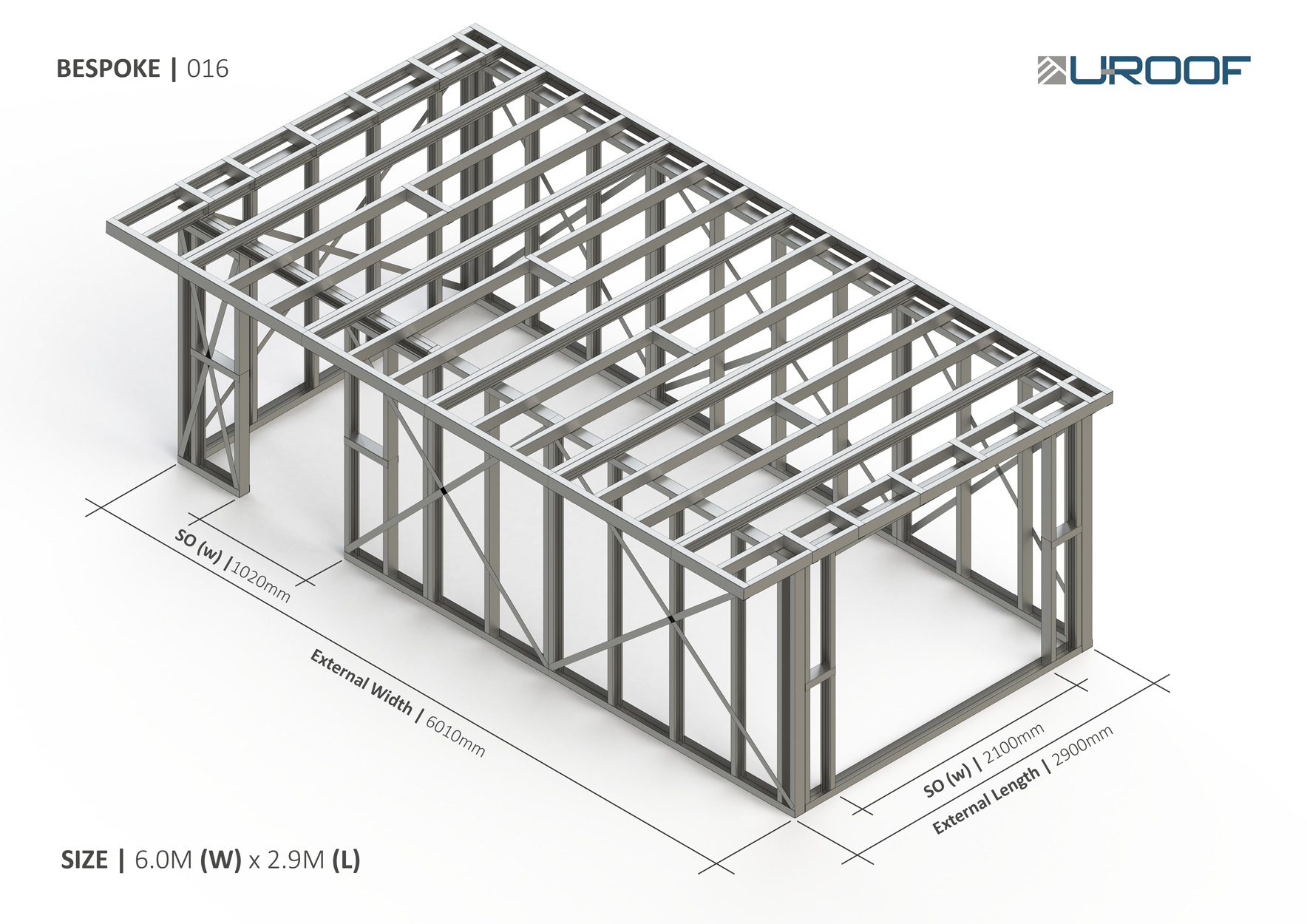

Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information
| Weight | 611 kg |
|---|---|
| Dimensions | 2900 × 6010 × 2288 mm |

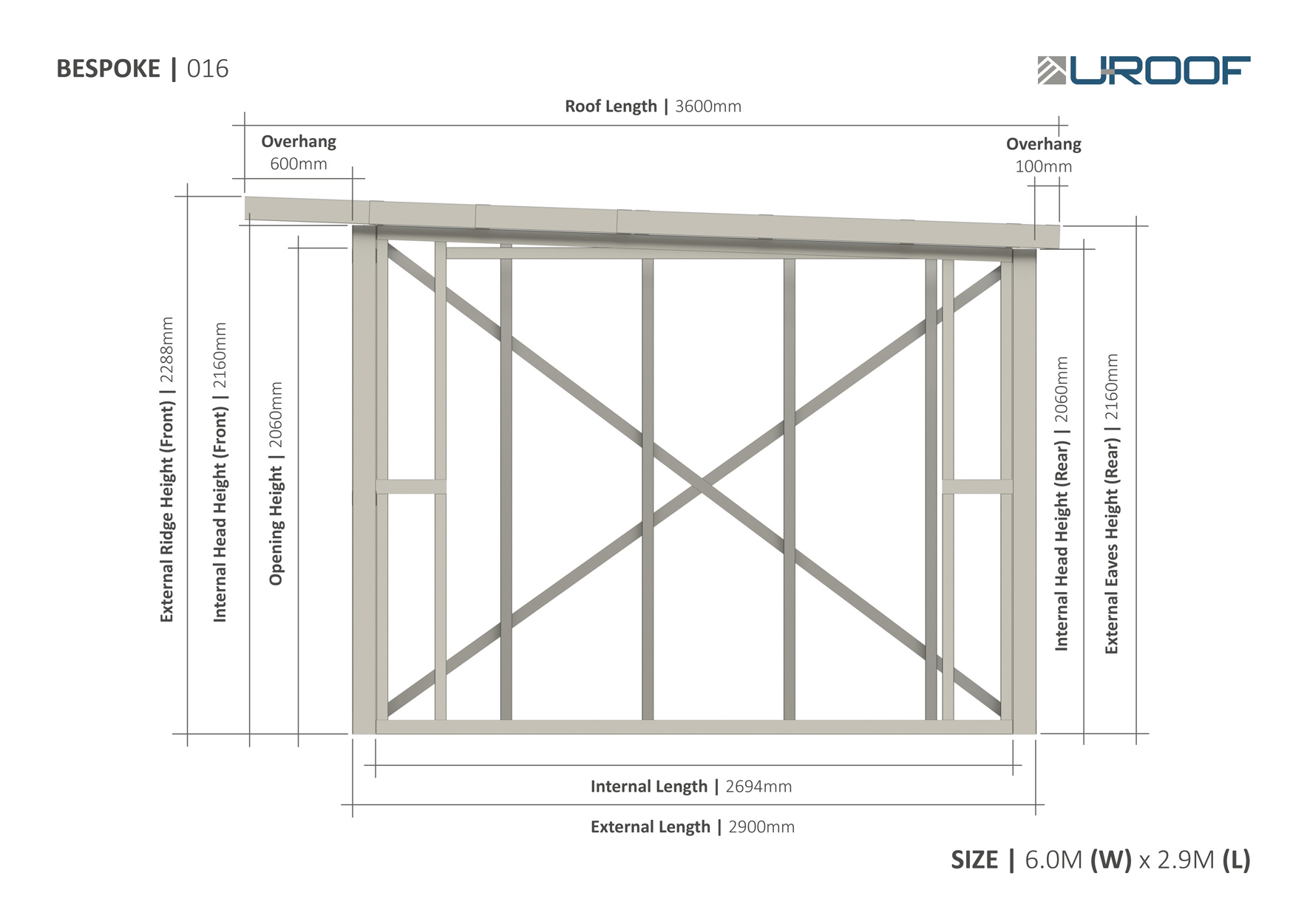

| External steel frame size | 6010mm (w) x 2900mm (l) |
| Internal steel frame size | 5804mm (w) x 2694mm (l) |
| External steel frame height (highest point) | 2288mm |
| External steel frame height (lowest point) | 2060mm |
| Front structural opening size | 1020mm (w) x 2060mm (h) |
| Side structural opening size | 2100mm (w) x 2015mm (h) |
| Front Overhang | 600mm |
| Rear, LHS & RHS Overhang | 100mm |
