Bespoke Garden Room | Bespoke 022


Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room

SKU: bespoke022 Category:


All of our frames are-prefabricated and will arrive to site in panel form.

The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.

A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.

Additional information

Weight 625 kg
Dimensions 2900 × 4300 × 2406 mm

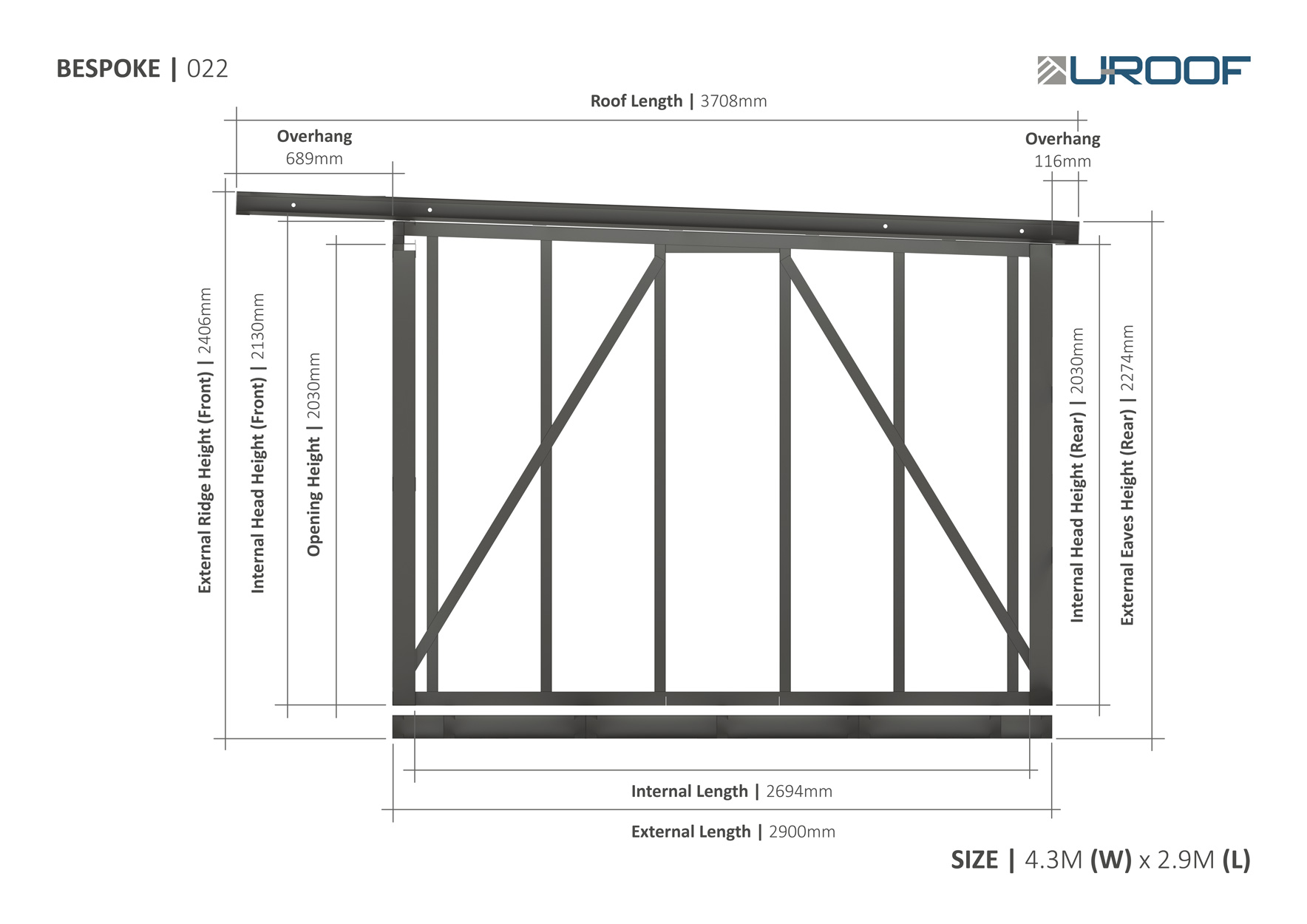

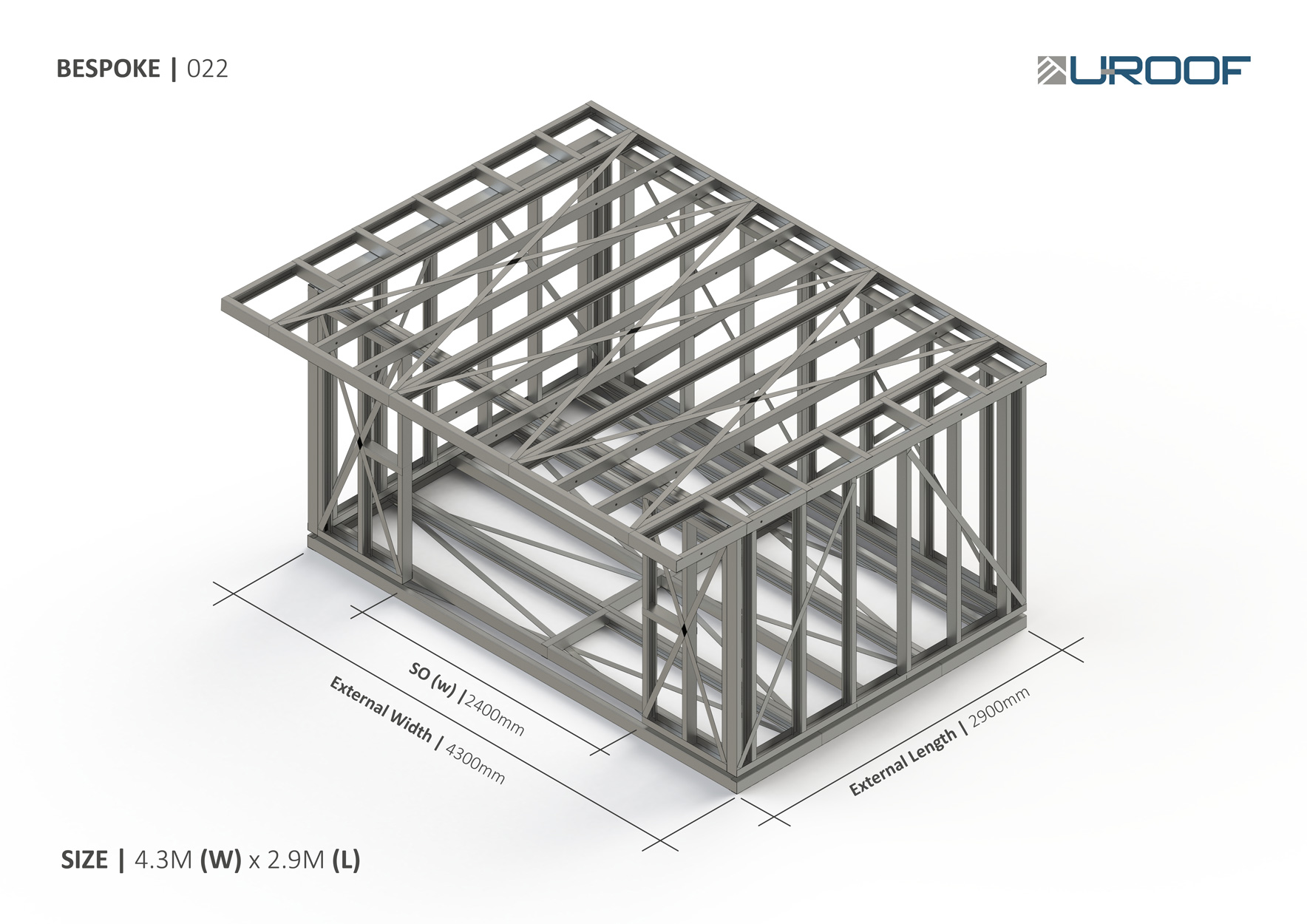

External steel frame size

4300mm (w) x 2900mm (l)

Internal steel frame size

4094mm (w) x 2694mm (l)

External steel frame height (highest point)


External steel frame height (lowest point)


Front structural opening size

500mm (w) x 1990mm (h)

Front Overhang


Rear Overhang


LHS & RHS Overhang
