Bespoke Garden Room | Bespoke 034
£3,894.79

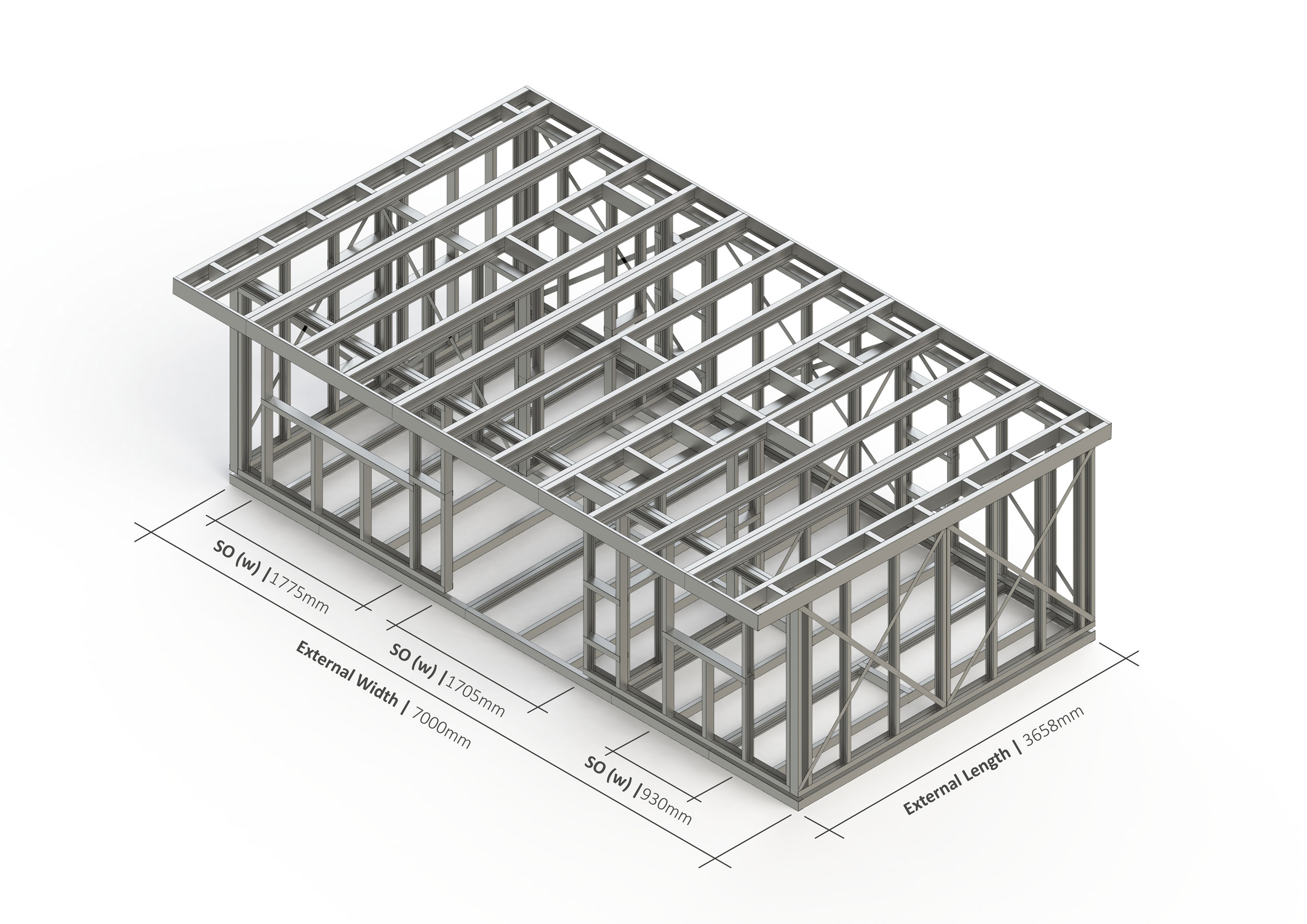

Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information
| Weight | 790 kg |
|---|---|
| External steel frame size | 7000mm (w) x 3658mm (l) |
| Internal steel frame size | 6794mm (w) x 3452mm (l) |
| External steel frame height (at highest point) | 2437mm |
| External steel frame height (at lowest point) | 2315mm |
| Front structural opening size 1 | 930mm (w) x 1060mm (h) |
| Front structural opening size 2 | 1705mm (w) x 2004mm (h) |
| Front structural opening size 3 | 1775mm (w) x 1050mm (h) |
| Side structural opening size | 570mm (w) x 1008mm (h) |
| Front Overhang | 600mm |
| Rear, LHS & RHS Overhang | 100mm |
