Bespoke Garden Room | Bespoke 039
£2,111.87
Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information
| Weight | 594 kg |
|---|---|

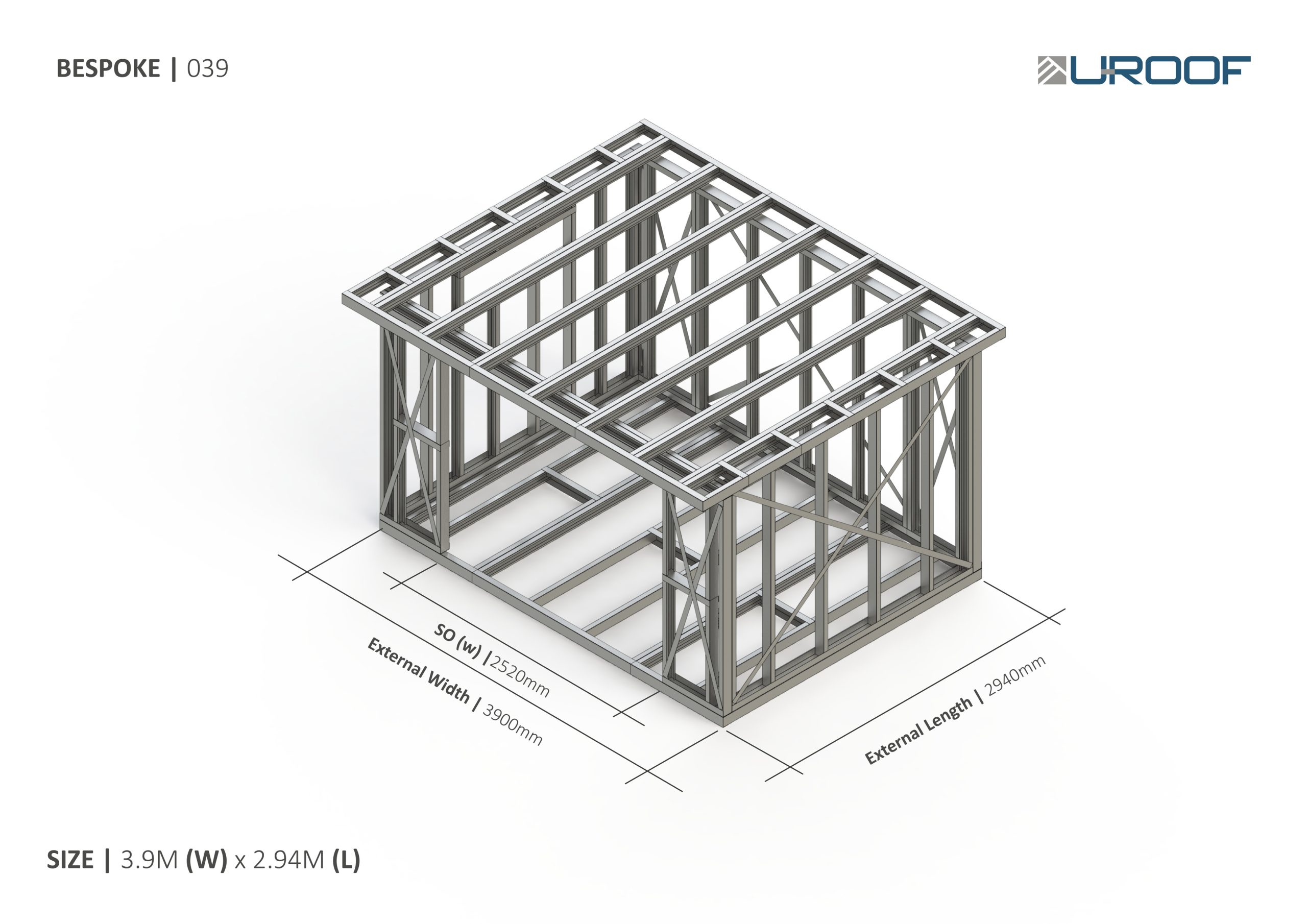

| External steel frame size | 3900mm (w) x 2940mm (l) |
| Internal steel frame size | 3694mm (w) x 2734mm (l) |

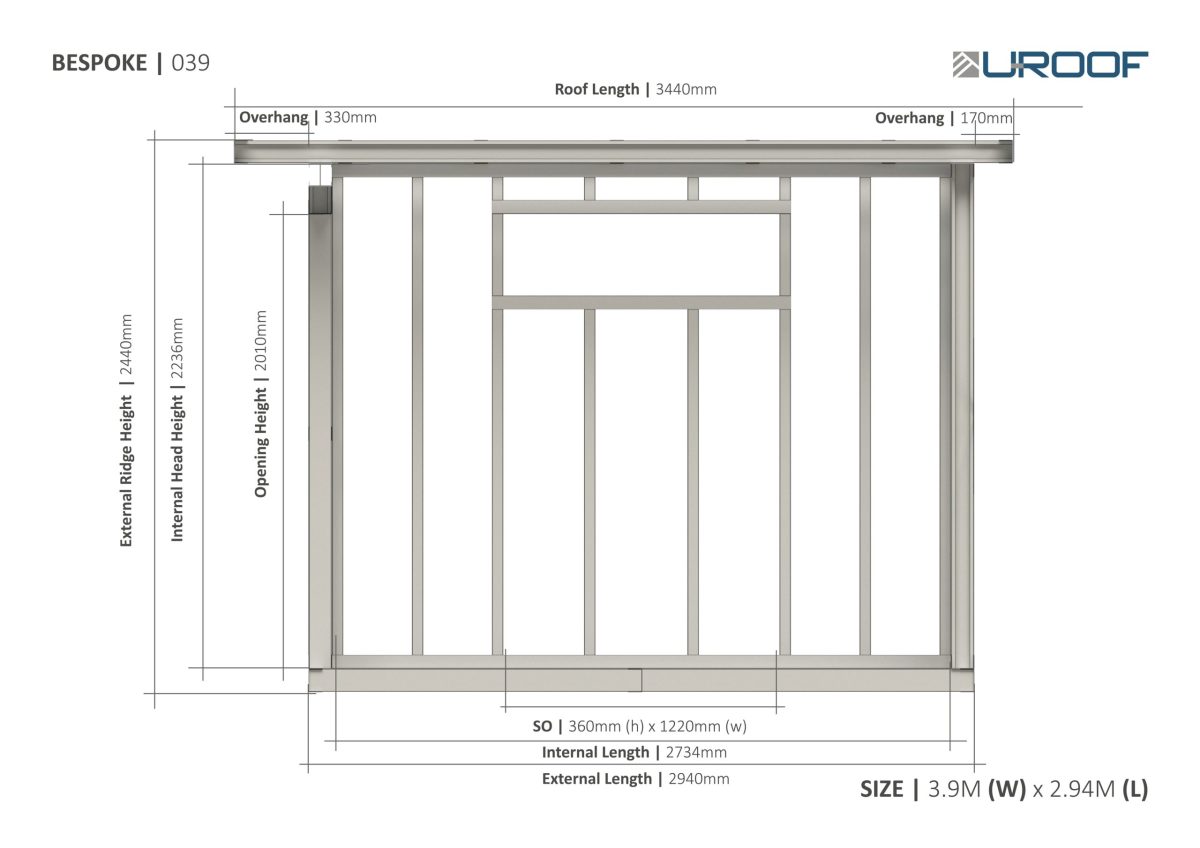

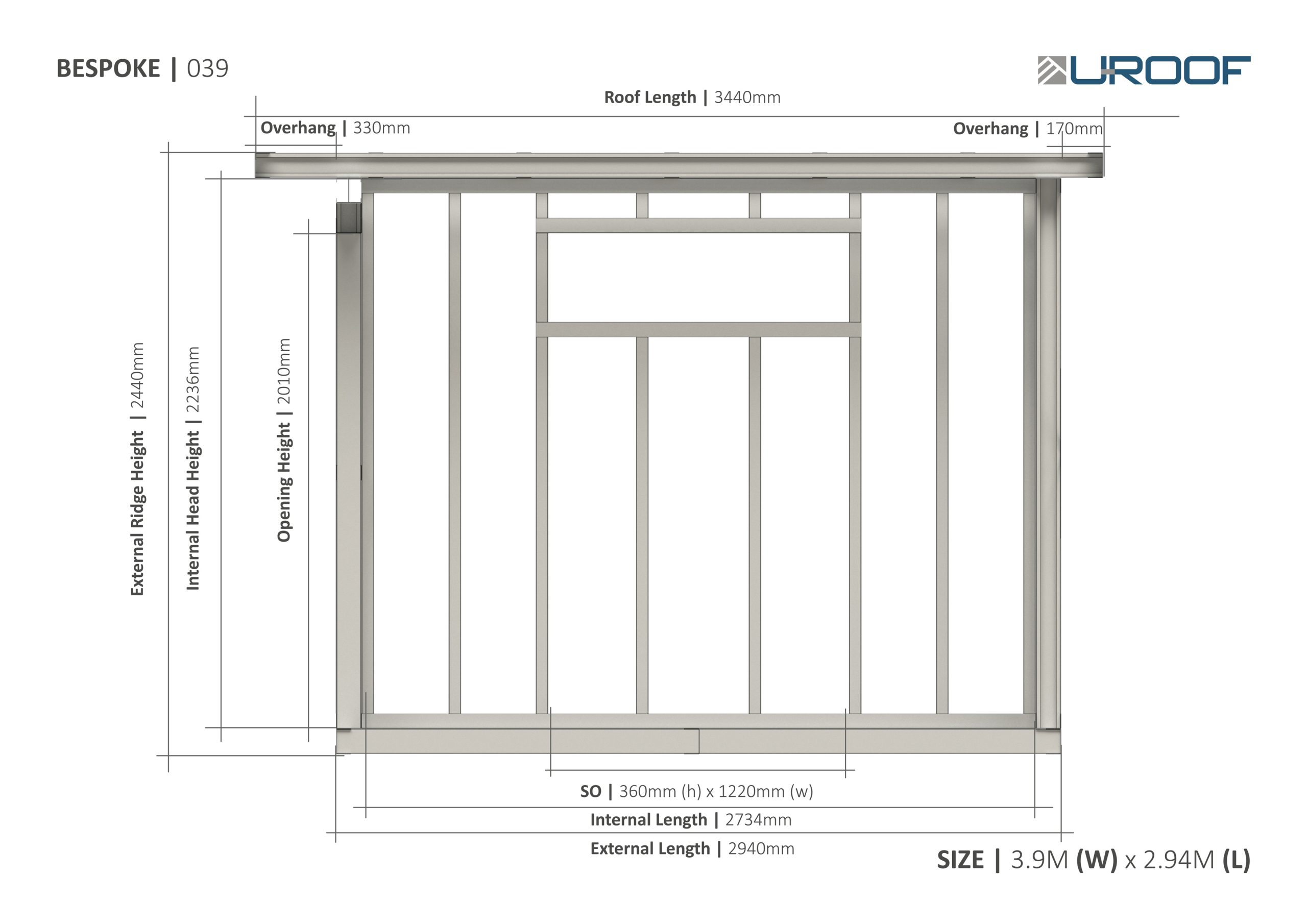

| External steel frame height (at highest point) | 2440mm |
| External steel frame height (at lowest point) | 2440mm |
| Front structural opening size | 2520mm (w) x 2010mm (h) |
| Side structural opening size | 1220mm (w) x 360mm (h) |
| Front Overhang | 330mm |
| LHS & RHS Overhang | 100mm |
| Rear Overhang | 170mm |
