Bespoke Garden Room | Bespoke 042
£2,990.01
Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information
| Weight | 0.914 kg |
|---|---|

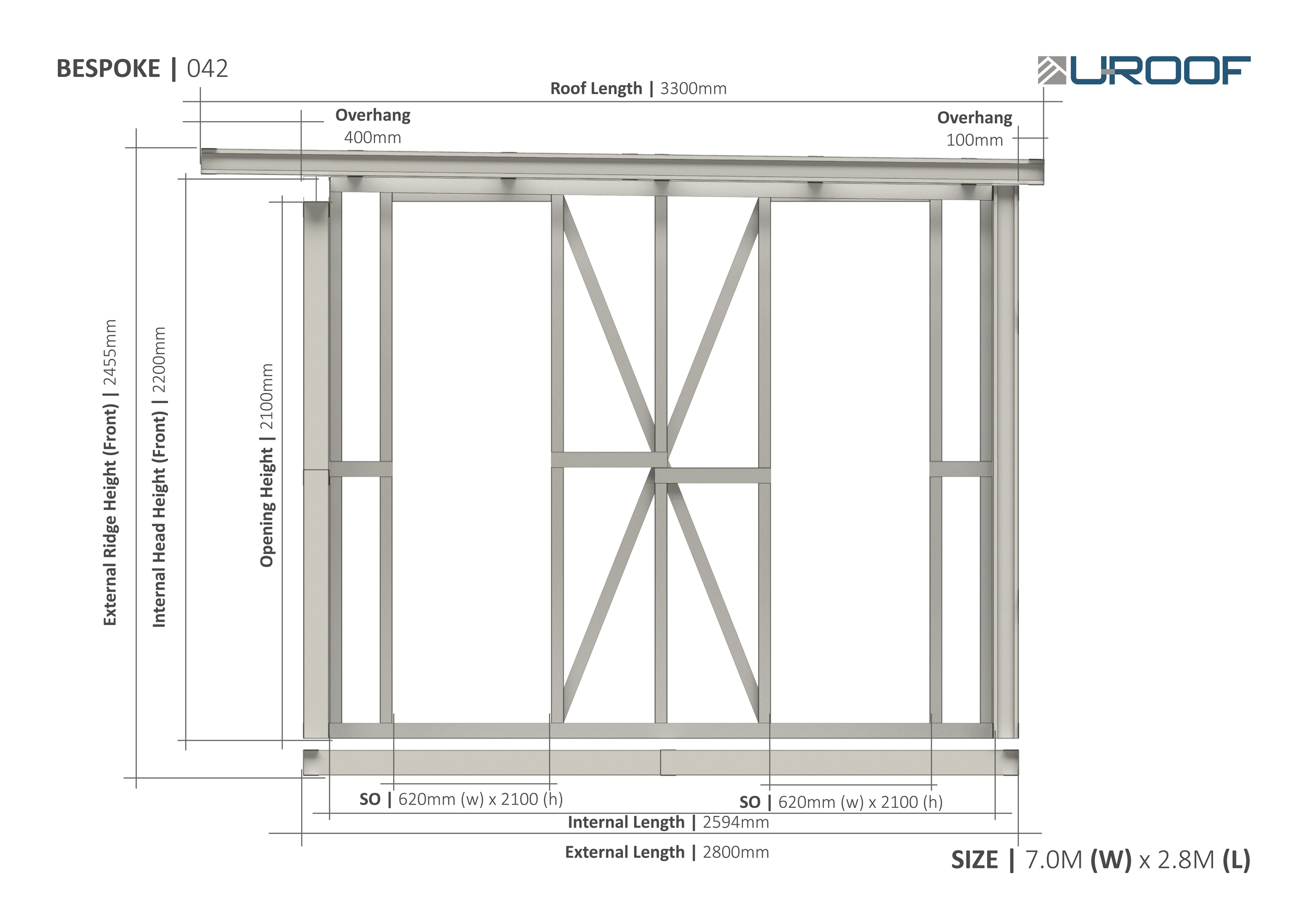

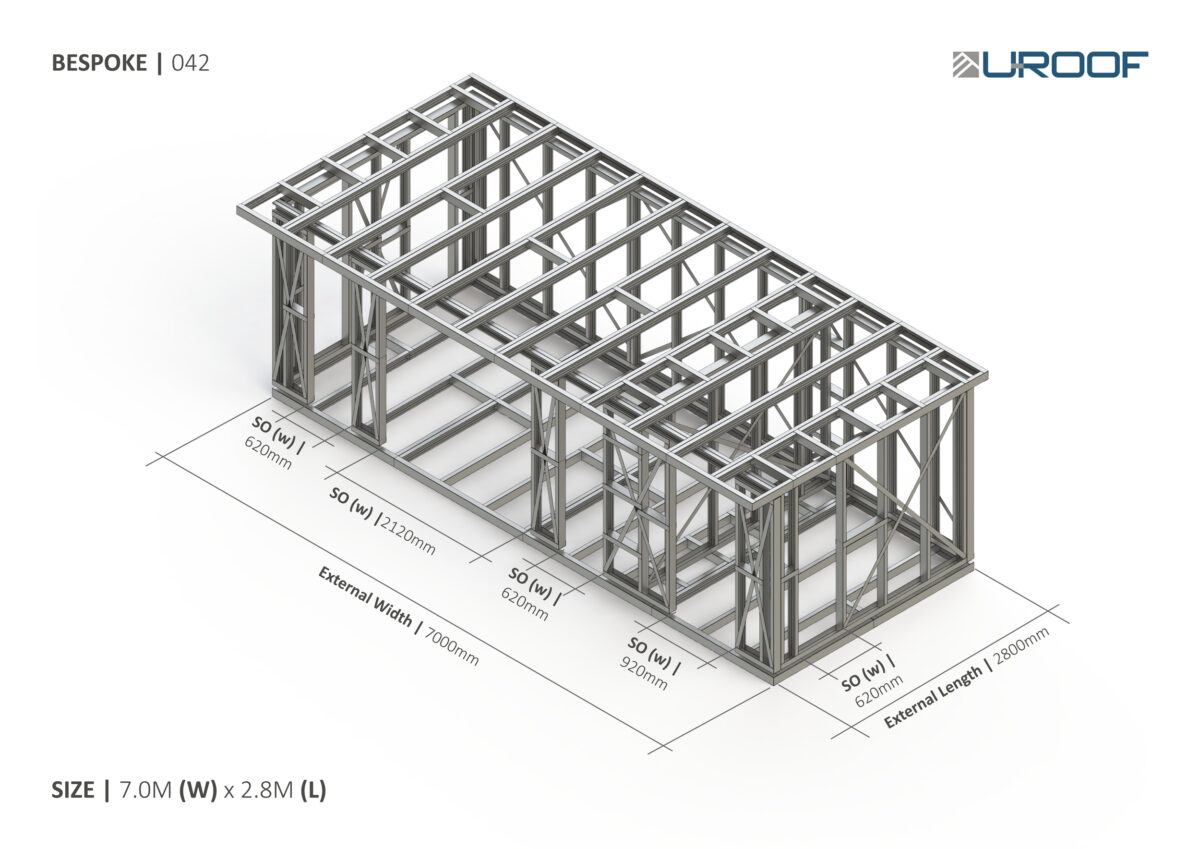

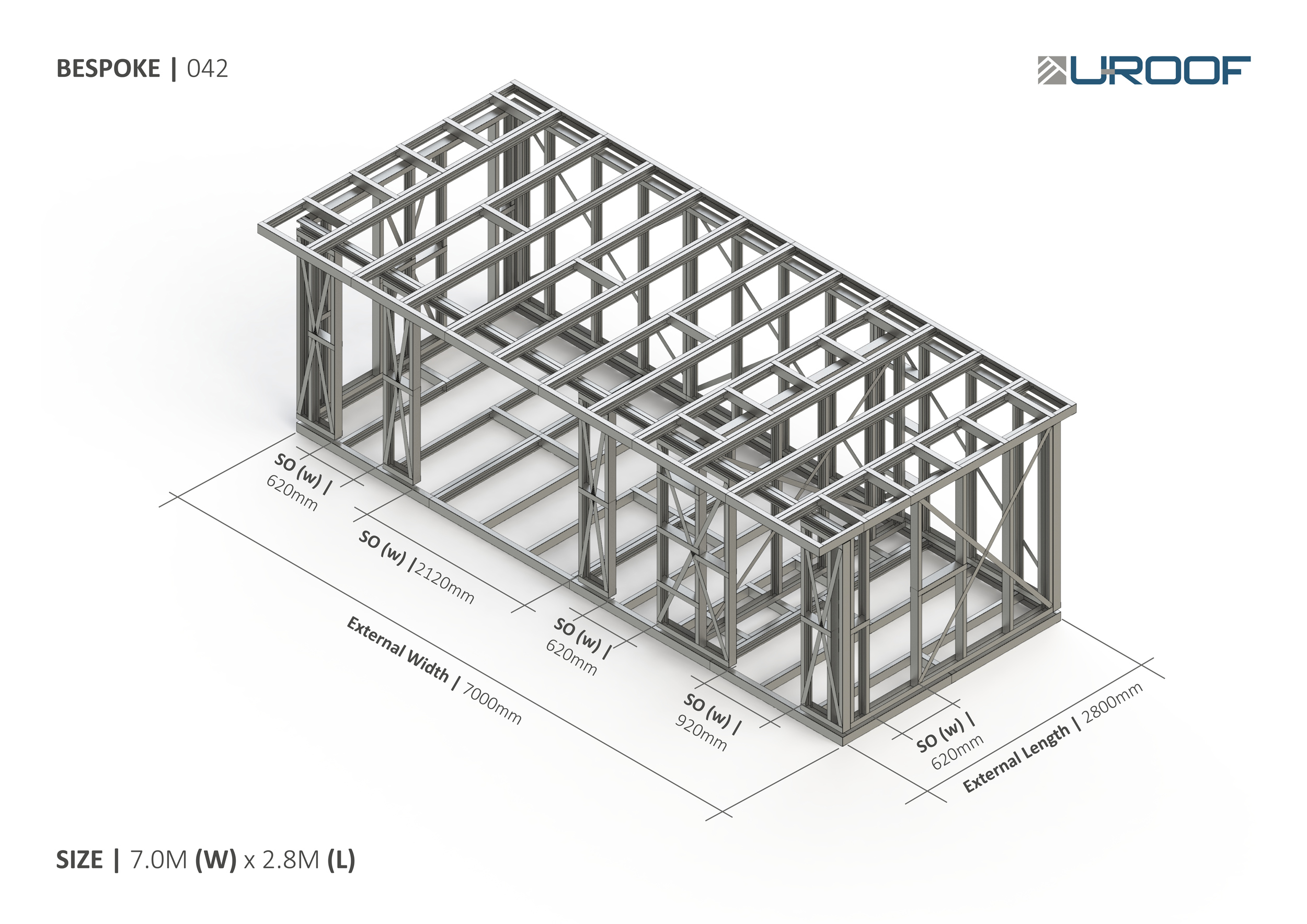

| External steel frame size | 7000mm (w) x 2800mm (l) |
| Internal steel frame size | 6794mm (w) x 2594mm (l) |
| External steel frame height (at highest point) | 2455mm |
| External steel frame height (at lowest point) | 2483mm |
| Front structural opening size 1 | 920mm (w) x 2100mm (h) |
| Front structural opening sizes 2 | 620mm (w) x 2100mm (h) |
| Front structural opening size 3 | 2120mm (w) x 2100mm (h) |
| Side structural opening sizes | 620mm (w) x 2100mm (h) |
| Front Overhang | 400mm |
| Rear, LHS & RHS Overhang | 100mm |
