Bespoke Garden Room | Bespoke 044
£3,609.62

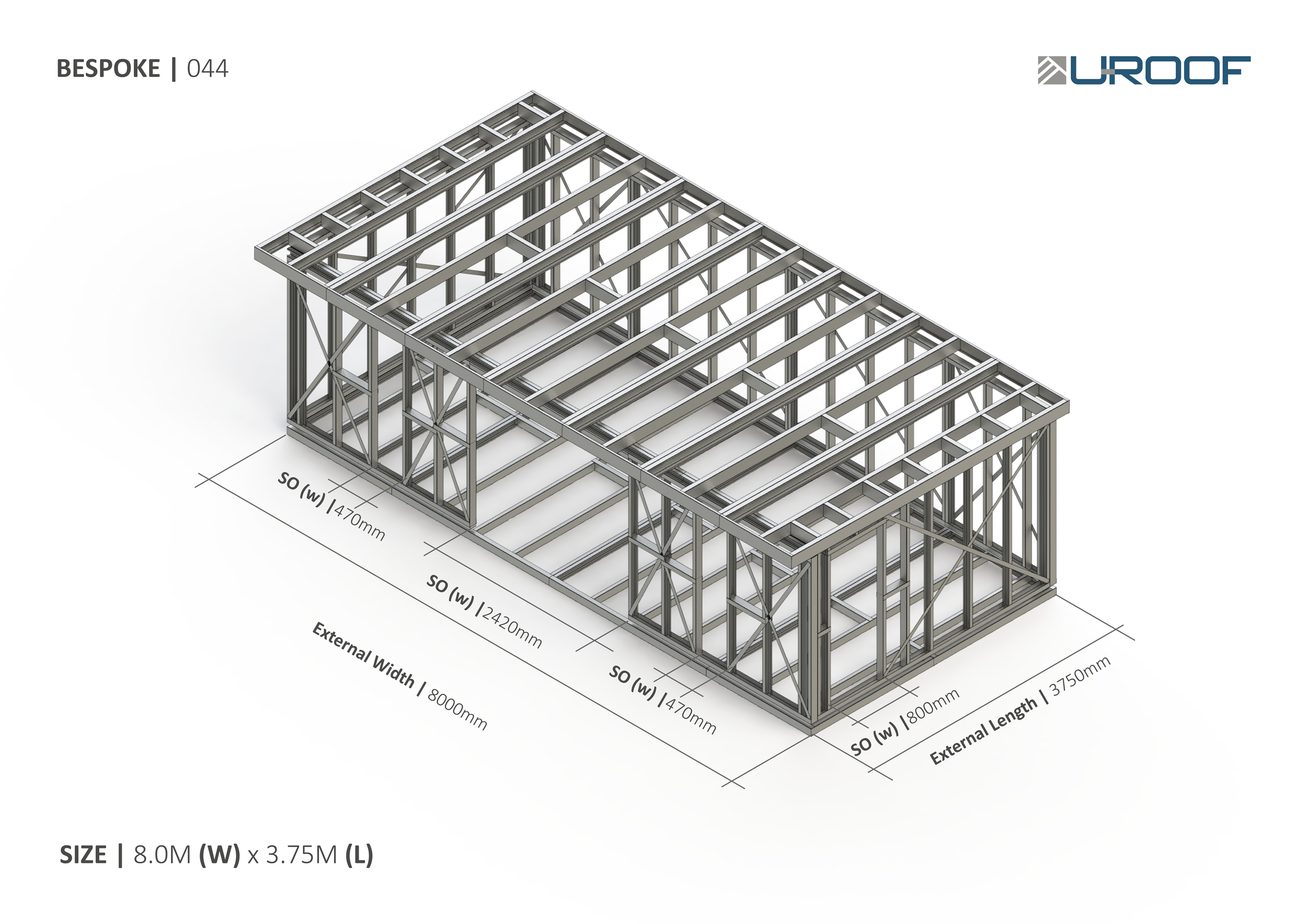

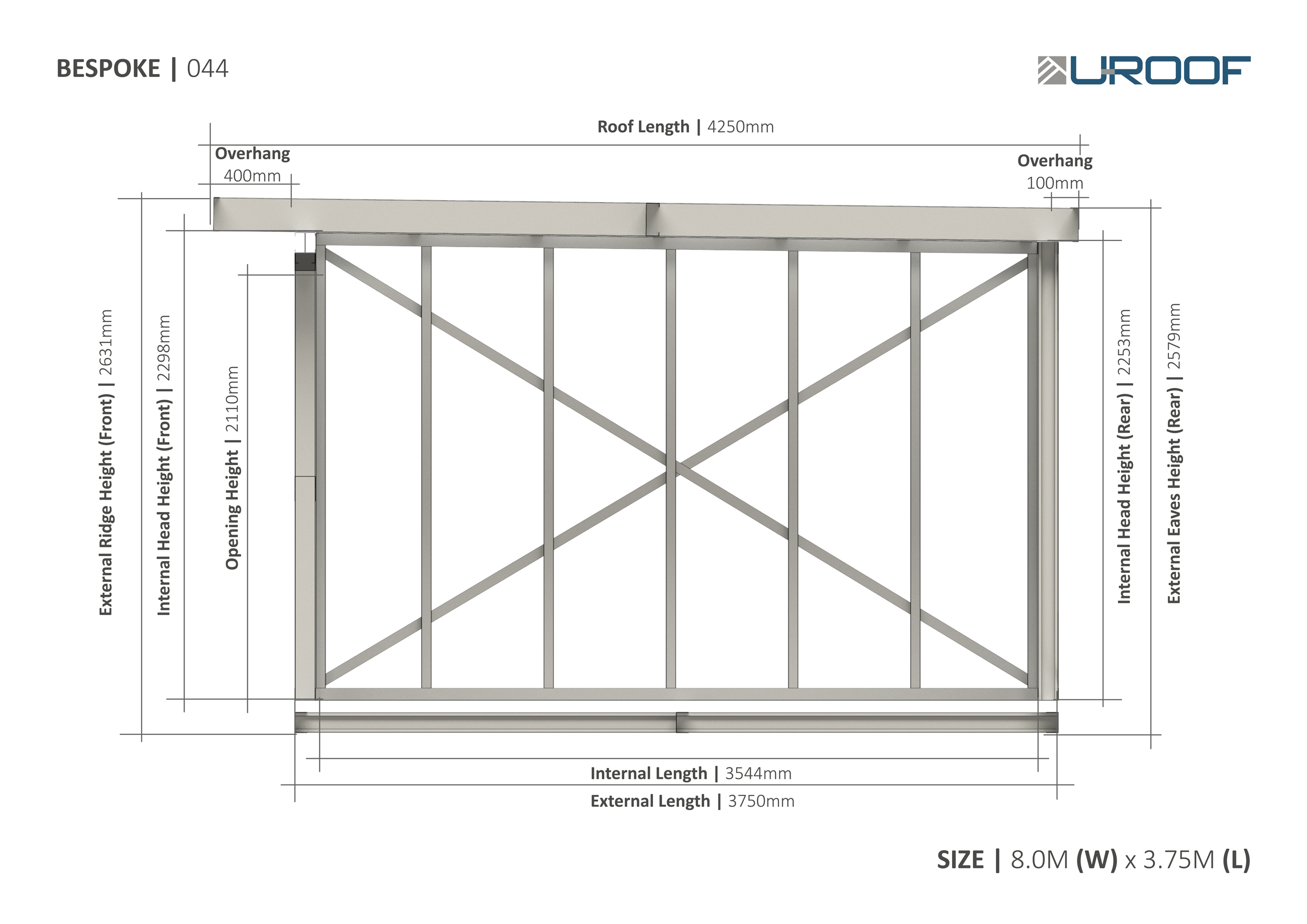

Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information
| Weight | 1.149 kg |
|---|---|
| Dimensions | 3750 × 8000 × 2631 mm |
| External steel frame size | 8000mm (w) x 3750mm (l) |
| Internal steel frame size | 7794mm (w) x 3544mm (l) |
| External steel frame height (at highest point) | 2631mm |
| External steel frame height (at lowest point) | 2579mm |
| Front structural opening sizes 1 | 470mm (w) x 2110mm (h) |
| Front structural opening size 2 | 2420mm (w) x 2110mm (h) |
| Front Overhang | 400mm |
| Rear, LHS & RHS Overhang | 100mm |
