Bespoke Garden Room | Bespoke 047
£8,854.93
Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information
| Weight | 2887 kg |
|---|---|
| Dimensions | 5000 × 18000 × 2850 mm |

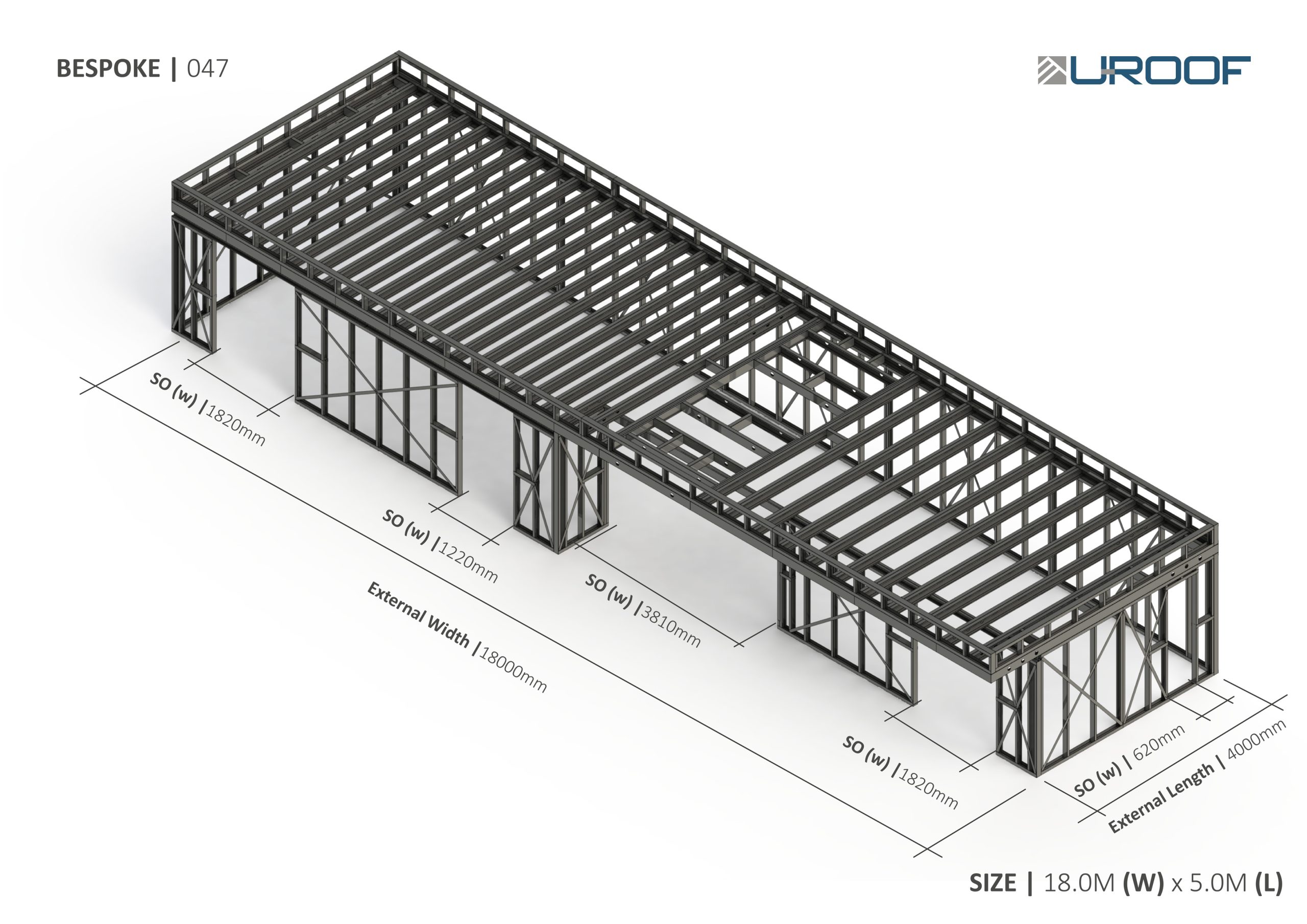

| External steel frame size | 18000mm (w) x 4000mm (l) |
| Internal steel frame size | 17794mm (w) x 3794mm (l) |

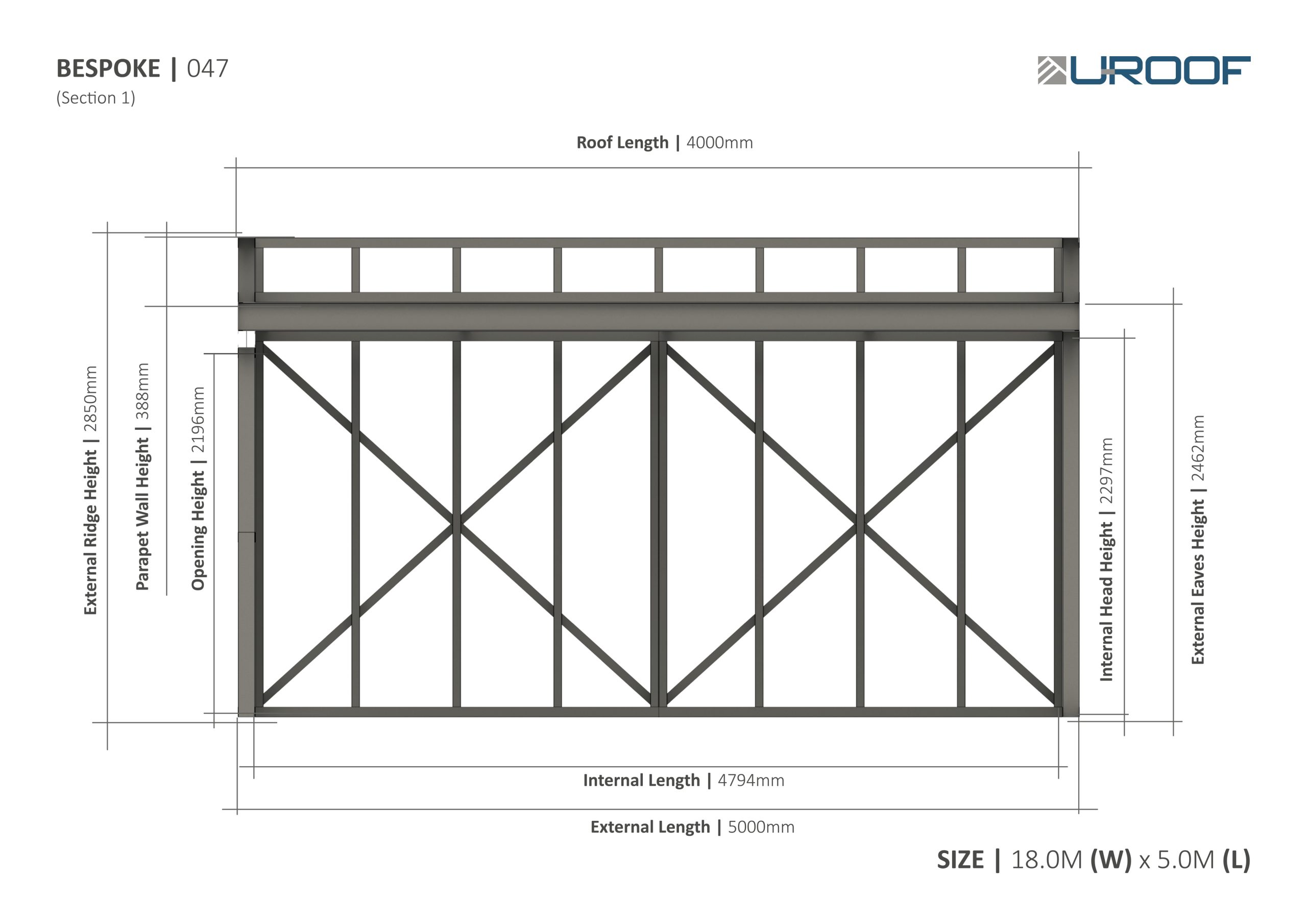

| External steel frame height (at highest point) | 2850mm |
| External steel frame height (at lowest point) | 2850mm |
| Front structural opening size 1 | 1820mm (w) x 2196mm (h) |
| Front structural opening size 2 | 3810mm (w) x 2136mm (h) |
| Front structural opening size 3 | 1220mm (w) x 2196mm (h) |
| Front structural opening size 4 | 1820mm (w) x 2196mm (h) |
| Side structural opening size | 620mm (w) x 2135mm (h) |

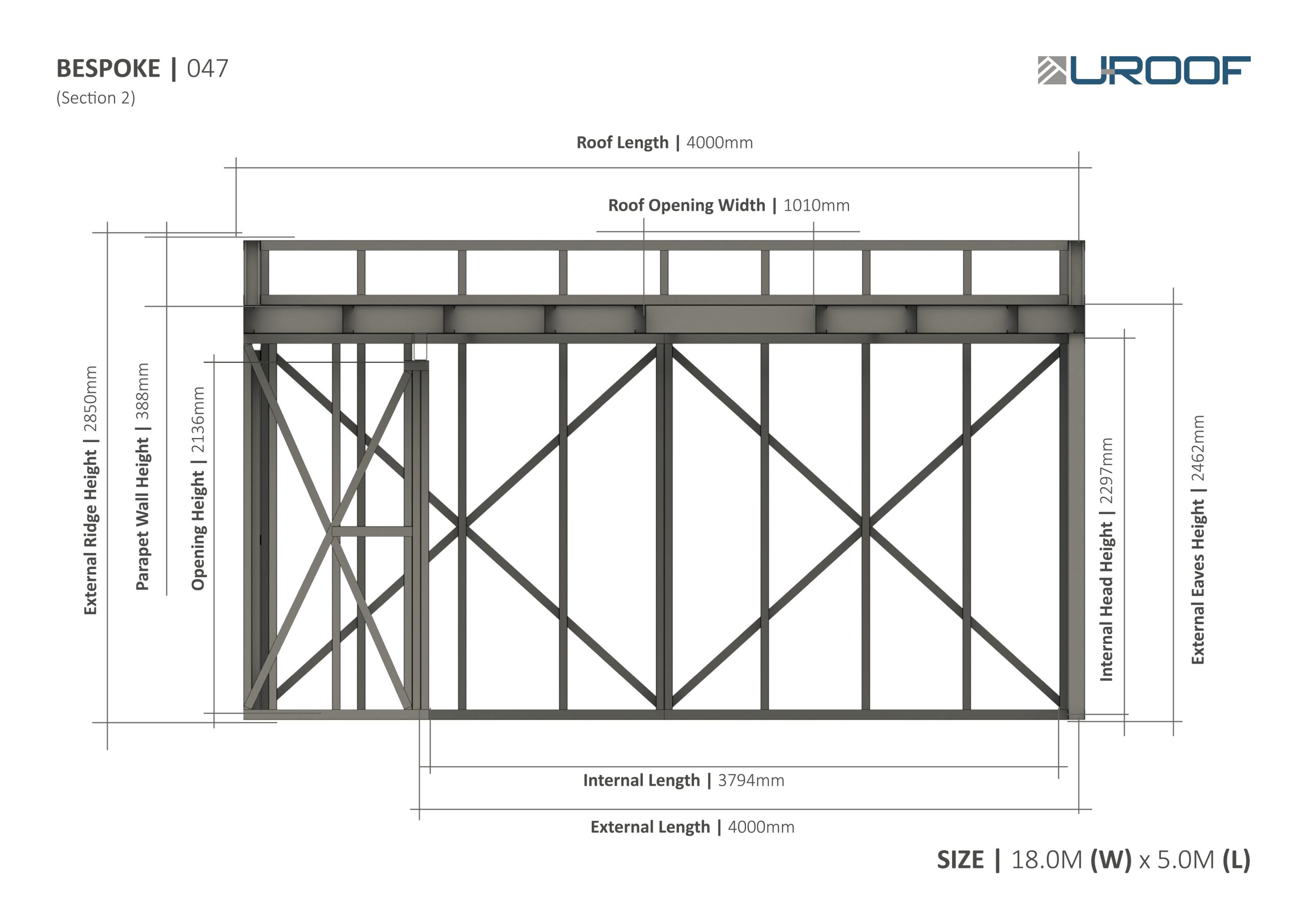

| Roof structural opening size | 2005mm (w) x 1010mm (h) |
| Front Overhang | 1000mm (in places) |
| Rear, LHS & RHS Overhang | 0mm |
