Bespoke Garden Room | Bespoke 010
£2,136.18
Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information
| Weight | 767 kg |
|---|---|
| Dimensions | 2900 × 6000 × 2449 mm |

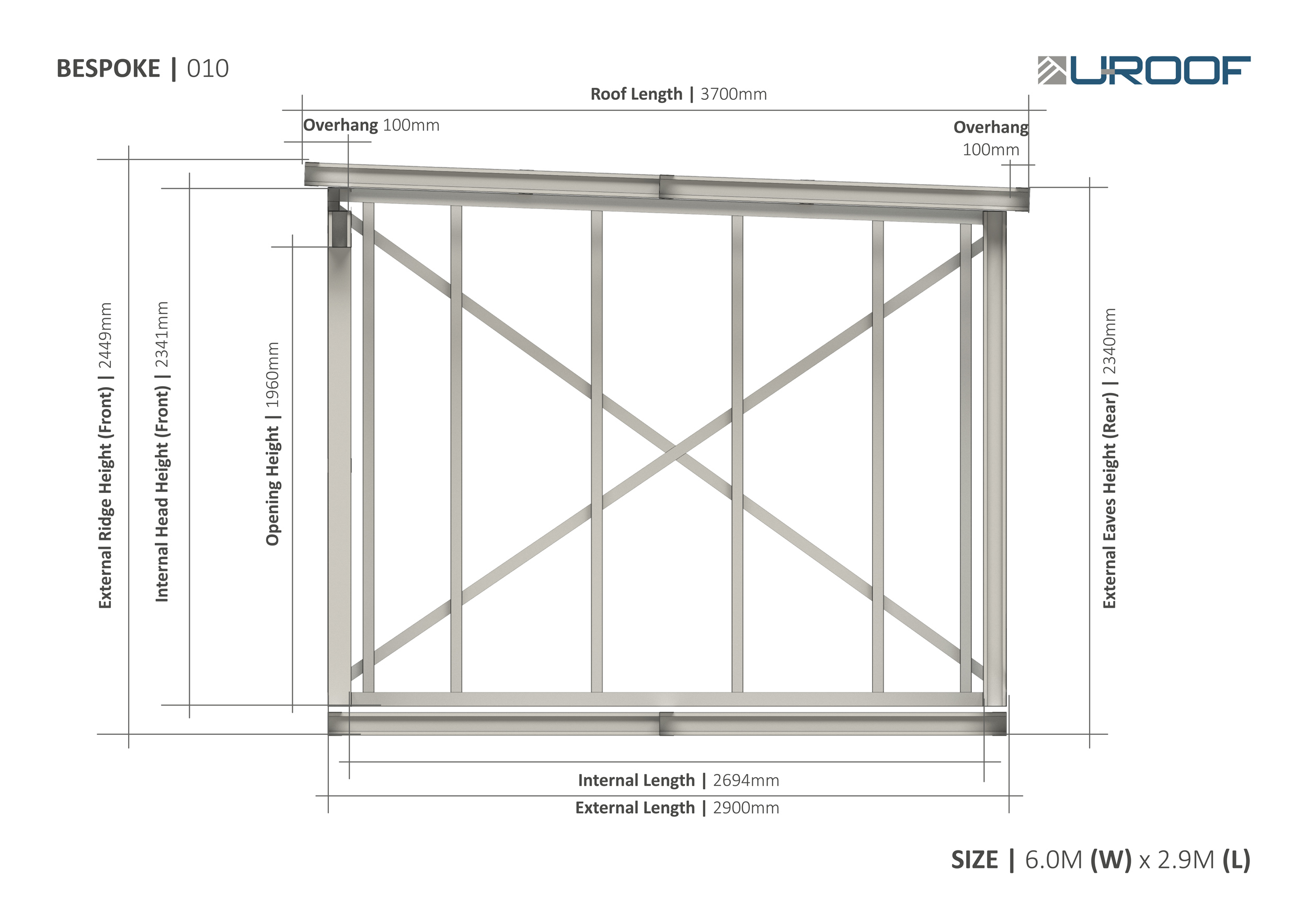

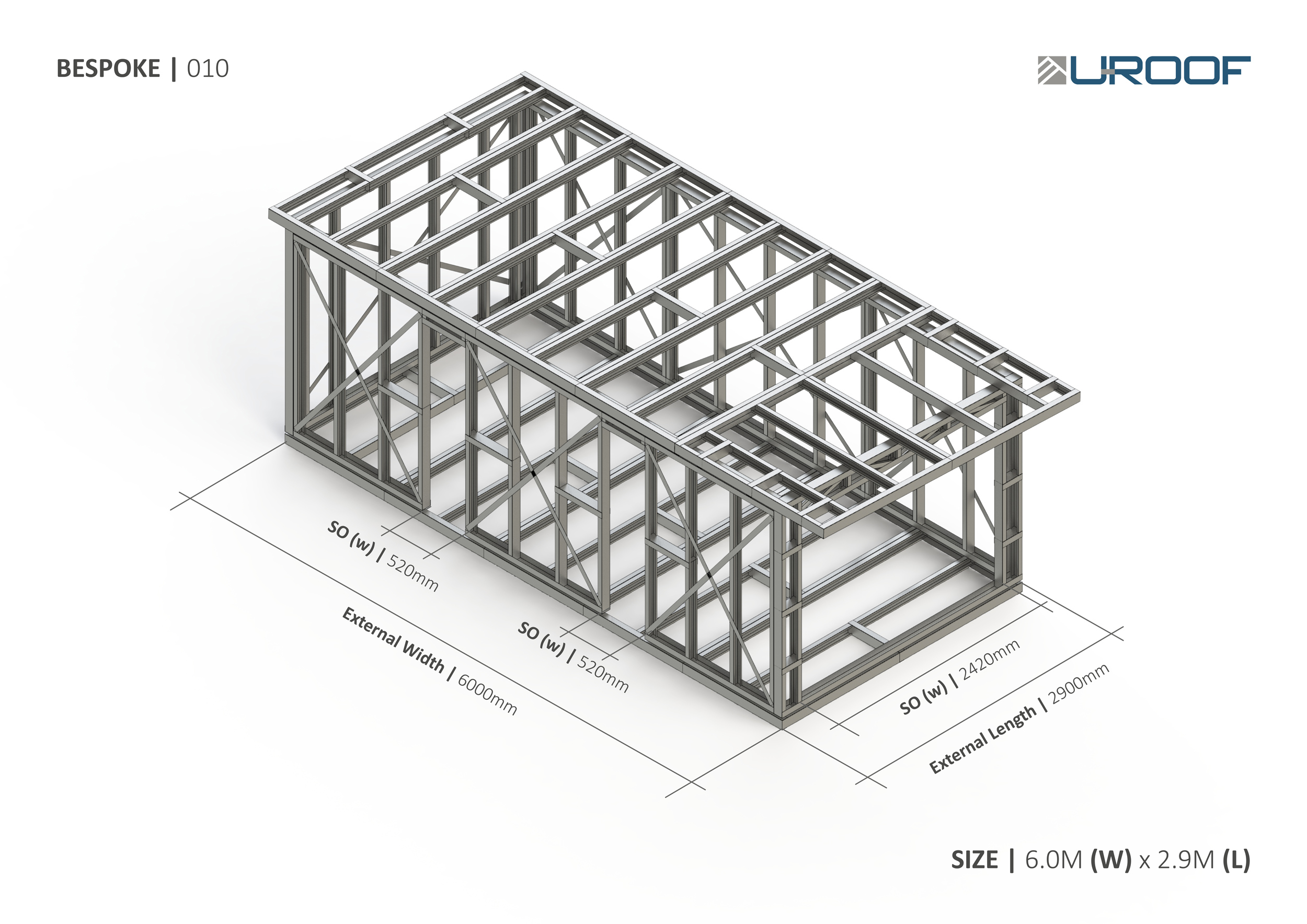

| External steel frame size | 6000mm (w) x 2900mm (l) |
| Internal steel frame size | 5794mm (w) x 2694mm (l) |
| External steel frame height (highest point) | 2449mm |
| External steel frame height (lowest point) | 2340mm |
| Front structural opening size | 2420mm (w) x 1960mm (h) |
| Side elevation (left) structural opening size x2 (Window) | 520mm (w) x 1960mm (h) |
| Front Overhang | 600mm |
| Rear, LHS & RHS Overhang | 100mm |
