Bespoke Garden Room | Bespoke 021
£2,984.59
Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room
Description
All of our frames are-prefabricated and will arrive to site in panel form.
The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.
A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.
Additional information

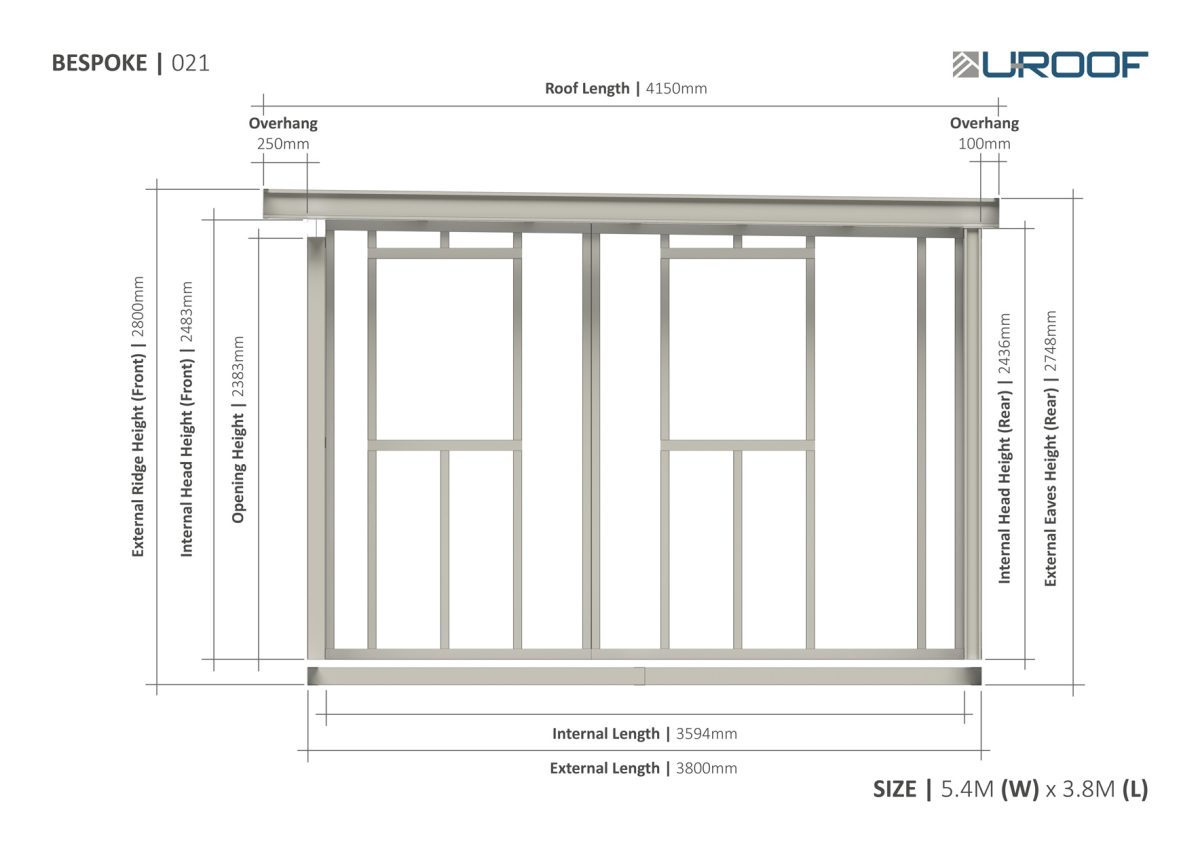

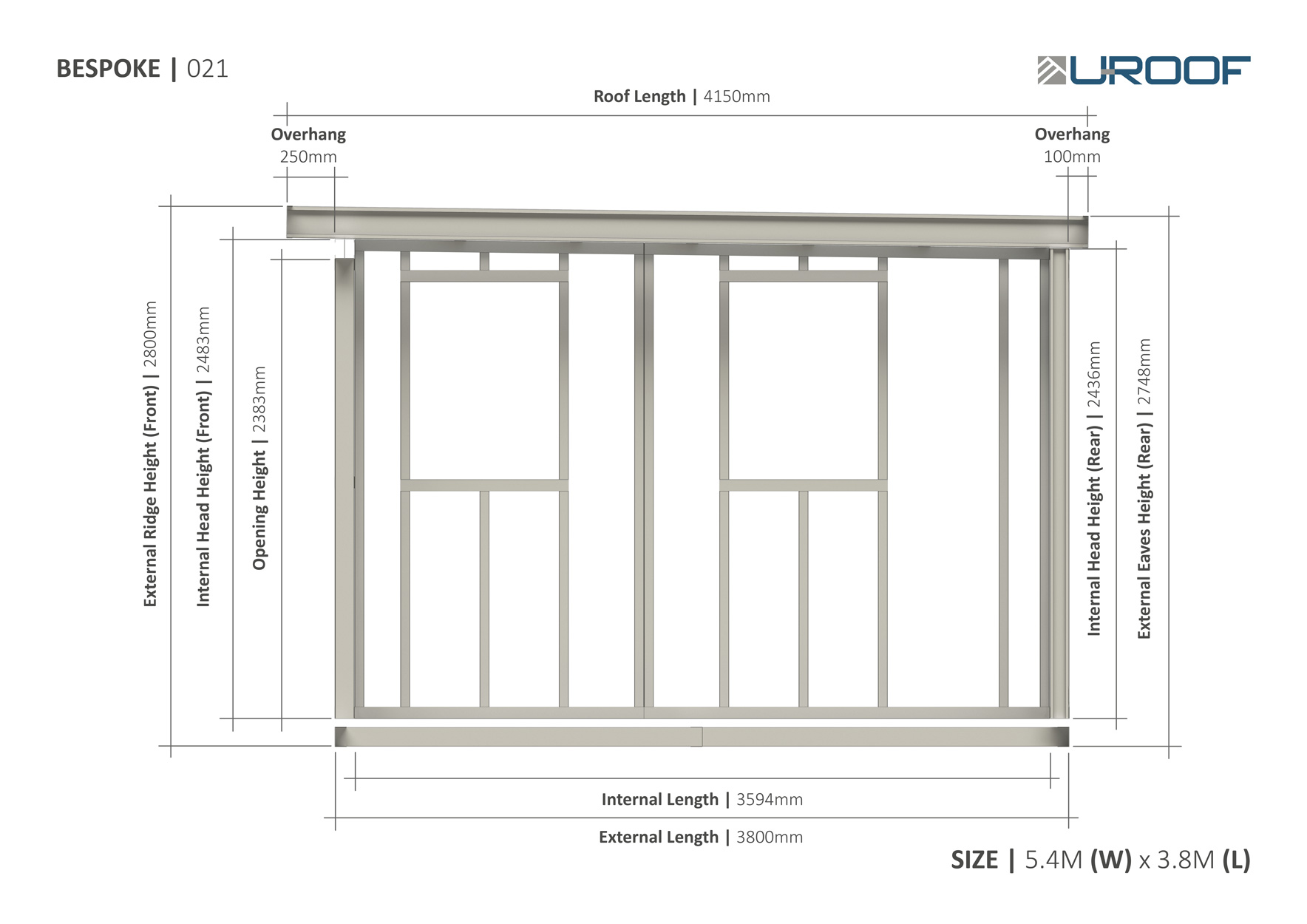

| Weight | 900 kg |
|---|---|
| Dimensions | 3800 × 5400 × 2800 mm |
| External steel frame size | 5400mm (w) x 3800mm (l) |
| Internal steel frame size | 5194mm (w) x 3594mm (l) |
| External steel frame height (highest point) | 2800mm |
| External steel frame height (lowest point) | 2436mm |
| Front structural opening size 1 | 1520mm (w) x 2383mm (h) |
| Front structural opening size 2 | 1520mm (w) x 420mm (h) |
| Side structural opening size (RHS) | 1520mm (w) x 420mm (h) |
| Side structural opening size (LHS) 1 & 2 | 750mm (w) x 1000mm (h) |
| Front Overhang | 250mm |
| Rear, LHS & RHS Overhang | 100mm |
