Bespoke Garden Room | Bespoke 027

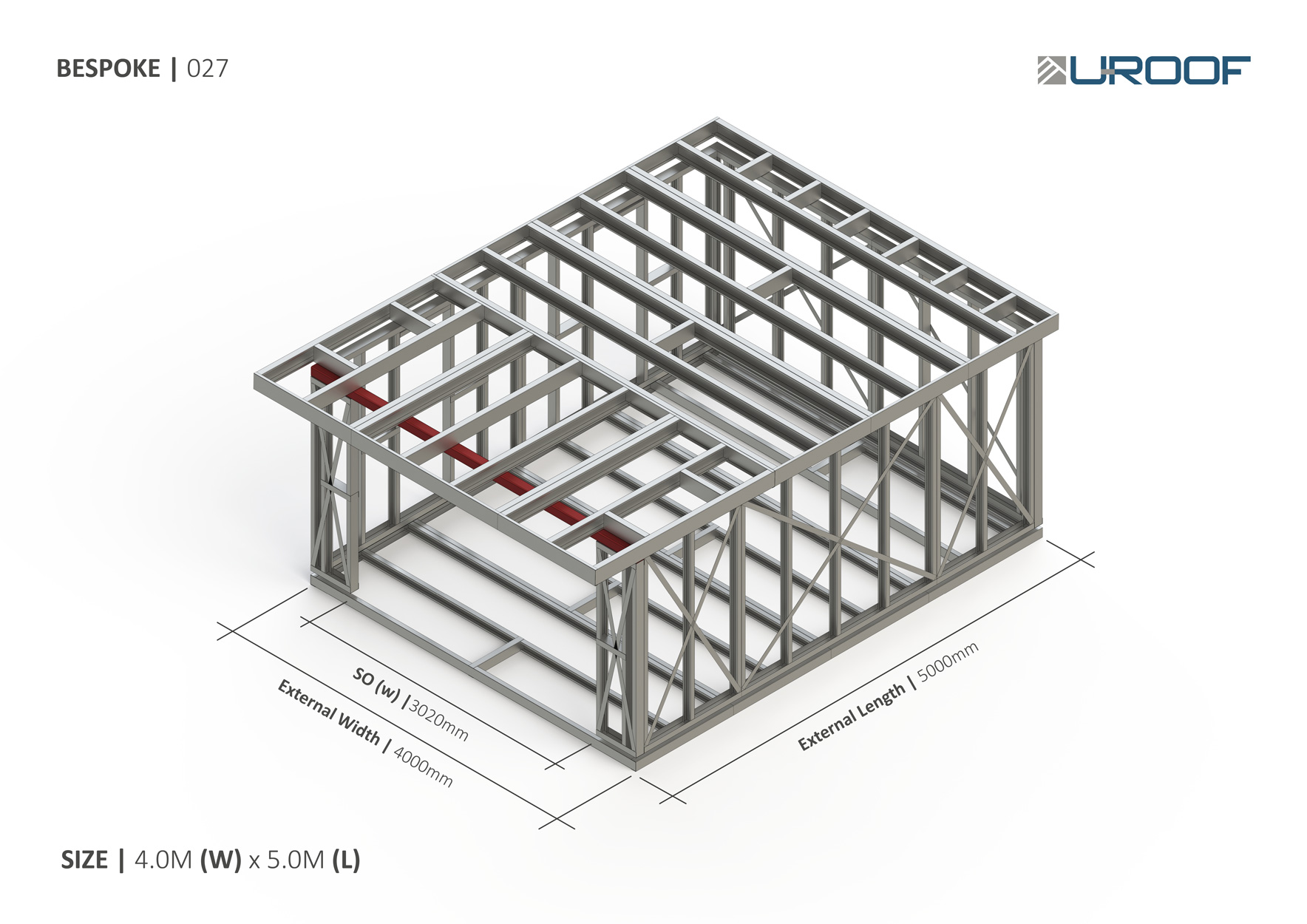

Galvanised Light Gauge Steel Frame (LGSF) Bespoke Garden Room

SKU: bespoke027 Category:


All of our frames are-prefabricated and will arrive to site in panel form.

The panels will require assembly on site with 5.5 x 25mm Hex Head Tek Screws using an 8mm drive bit. These screws are supplied.

A physical copy of project specific Installation Drawings and an Installation Manual are supplied upon delivery.

Additional information

Weight 784 kg
Dimensions 5000 × 4000 × 2498 mm

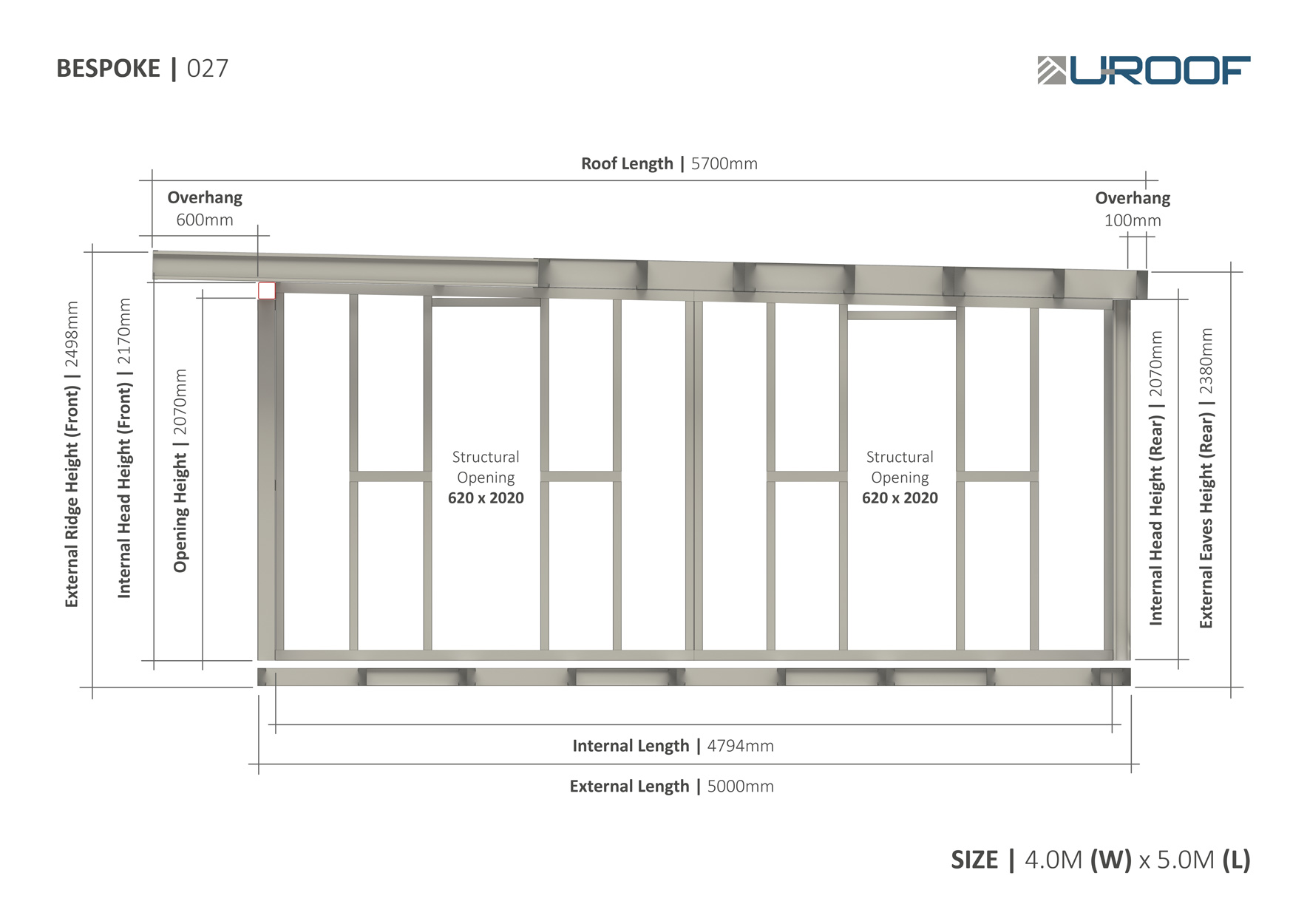

External steel frame size

4000mm (w) x 5000mm (l)

Internal steel frame size

3794mm (w) x 4794mm (l)

External steel frame ridge height (at highest point)


External steel frame eaves height (at lowest point)


Front structural opening size

3020mm (w) x 2070mm (h)

Side structural opening sizes

620mm (w) x 2020mm (h)

Front Overhang


Rear, LHS & RHS Overhang
